Anatolia
Anatolia is a high-performance hyperbaric chamber designed for professional sports recovery, and advanced wellness environments, combining certified safety, modular design, and premium user comfort.
- Operating pressure up to 2.0 or 2.4 ATA
- Modular design for easy installation
- Integrated BIBS system for controlled oxygen delivery
- Integrated system for session and monitoring data
Anatolia
Anatolia Hyperbaric Chamber 2.0/2.4 ATA is engineered to deliver reliable clinical-grade performance while maintaining the highest standards of safety, comfort, and operational flexibility. Designed for sports recovery centers, premium wellness environments and luxury private residences, Anatolia supports a wide range of therapeutic and performance-focused applications.
At the core of the system is a full steel pressure vessel capable of stable and repeatable operation at pressures up to 2.4 ATA. This robust construction ensures long-term durability and consistent performance under intensive professional use.
Beyond performance, Anatolia is designed with both users and operators in mind. A spacious, ergonomic interior, optimized visibility, low operational noise, and refined materials create a calm and reassuring experience throughout each session. The chamber’s modular architecture allows facilities to configure breathing systems, interior layouts, and control components according to their specific operational needs, protecting the investment as requirements evolve over time.
| Feature/Specification | Anatolia |
| Chamber Material (*|**) | Steel |
| Chamber Dimension (LxW) | 242×83 |
| Max Pressure (Custom#) | 2.0 | 2.4 ATA |
| Modular Sections | Yes |
| Oxygen Delivery (Dual) | BIBS & Free Flow Mask or Cannula |
| Control Tablet (Dual) | External 21″/Internal 16″ Tesla Style Touch Screen |
| Module Functions | Customizable protocols, 2-Way communication |
| Occupancy x Seating (Option*) | 1 fully reclined and upright seated positions |
| Lighting | Adjustable LED RGB Lights |
| Certifications Included | 2006/42/EC/ , 93/42/EEC (PED) |
| Certifications Optional | ASME PVHO-1, UKCA, MEDICAL CE |
| Compressor | |
| Dimensions (LxWxH) cm | 61x36x67 |
| Weight (Kg) | 45 |
| Horse Power (HP) | 2 |
| Lpm Output | 250 |
| Noise Level (db) | 46 |
| Price | Included |
| Oxygen Concentrator | |
| Dimensions (LxWxH) | kg | 70x48x107cm | 155kg |
| Lpm | o2% | Pressure | 20Lpm | ±93% | 5 Bar |
| Watts | Horse Power (HP) | 2500W | 3.3hp |
| Noise Level (db) | ≤72 db |
| Units Required | 1 |
| Price/Unit | Extra |
| Chiller | |
| SMC Chiller (Japan) | 1kW@-10C|-10C-40C|50x38x64cm|40kg |
| Cooling Method | Air-cooled refrigeration |
| Price | Extra |
Dual Oxygen Delivery Systems
Providing a customized user experience, the ProReset x HPOTech hyperbaric chambers include a unique dual oxygen delivery system with the flexibility to switch to either BIBS mask or Free Flow (mask or cannula) system.
Built-in Breathing System (BIBS)
BIBS is an advanced oxygen delivery system providing oxygen on demand only when a user needs to inhale. Oxygen is provided through a mask and sourced from a high-efficiency oxygen concentrator delivering 20 LPM (liters per minute). The BIBS system delivers oxygen regardless of the user’s breathing patterns, making it ideal for individuals with respiratory challenges or limited lung capacity. BIBS helps prevent carbon dioxide (CO₂) buildup by maintaining constant airflow, enhancing safety during hyperbaric oxygen therapy sessions. Its user-friendly design requires minimal user interaction.
Free Flow Oxygen Delivery System
The Free Flow system offers a simple and effective method for delivering oxygen in hyperbaric chambers. Utilizing a 20 Lpm oxygen concentrator, it provides a continuous oxygen stream delivered directly to the user’s respiratory system via a mask or nasal cannula offering flexibility and comfort during sessions. The Free Flow system is ideal for those seeking a more flexible experience. Its simplicity, ease of use, and low maintenance make it a practical option.
High Power Oxygen Concentrator
The high-powered oxygen concentrator is designed to deliver 20 LPM of ±93% ±3% oxygen content at 5.0 Bar pressure to each user. This ensures that every breath taken within the hyperbaric chamber is enriched with the vital oxygen, maximizing the potential for wellness, recovery and performance.
Air Compressor
The Air Compressor inflates the chamber body with filtered room air. The system compresses, maintains the user at the desired pressure, and decompresses the chamber when required. Chamber pressure and session duration are controlled by the user from the interior or from the operator from the exterior according to protocol recommendations.
Chiller System
A chiller system for hyperbaric oxygen therapy (HBOT) is a component that helps regulate and maintain the temperature inside the chamber. When users are inside the chamber, the increased atmospheric pressure can cause the temperature to rise. The chiller system counteracts this effect by efficiently cooling the chamber and maintaining an optimal temperature for a comfortable hyperbaric experience.

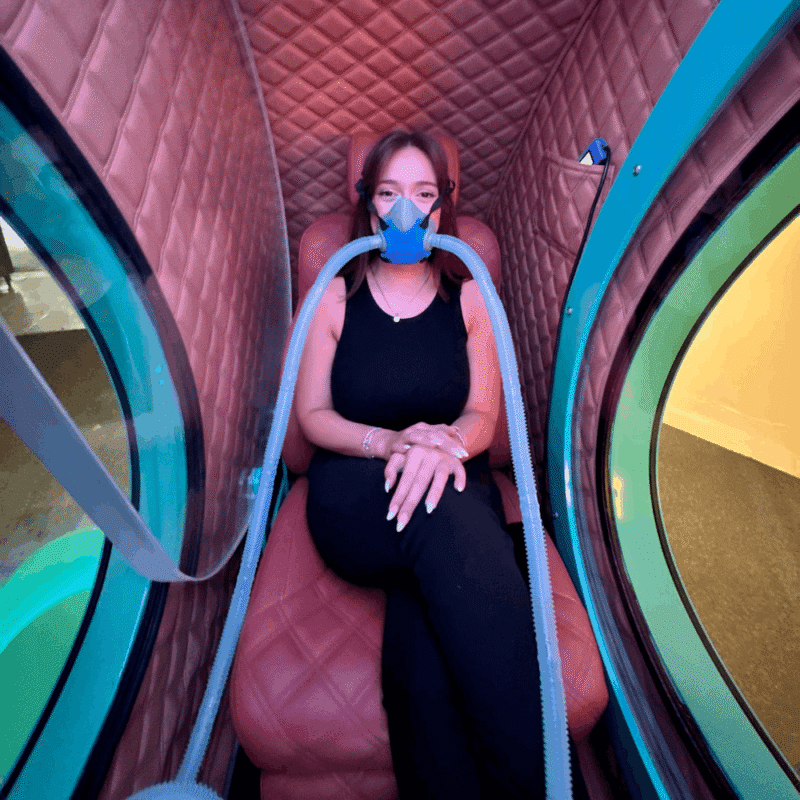

Ergonomic Interior and User Comfort
Electrically adjustable seating supports both lying and seated positions, allowing flexibility across different treatment protocols and session durations. Premium interior finishes, optimized lighting, and refined materials contribute to reduced stress and improved user compliance.
Data Management and Future Readiness
An integrated data logging system records pressure profiles, session parameters, and optional medical monitoring data. Stored sessions can be reviewed and reported, with future integration potential for external monitoring or performance platforms.
- Interior layout and seating configuration
- Breathing system configurations
- Control and monitoring system upgrades
- Interior and exterior design customization
- Integration options for clinical or wellness environments
- Exterior Paint Color (RAL Codes), Interior Lining (Riva Codes), Lounge Seat (Modena or Polisoft).
With a choice of over 170 RAL color codes, the Anatolia can be fully customized with the client’s choice of exterior color, accent finishes, interior lining and lounge seat allowing for a personalized and functional style suited to individual preferences or interior design concept of any home, wellness centre or clinic.
