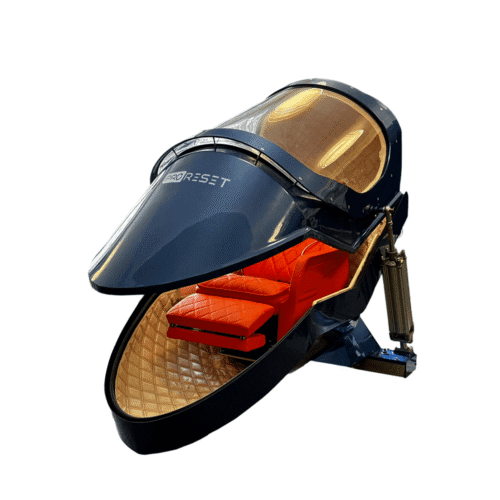

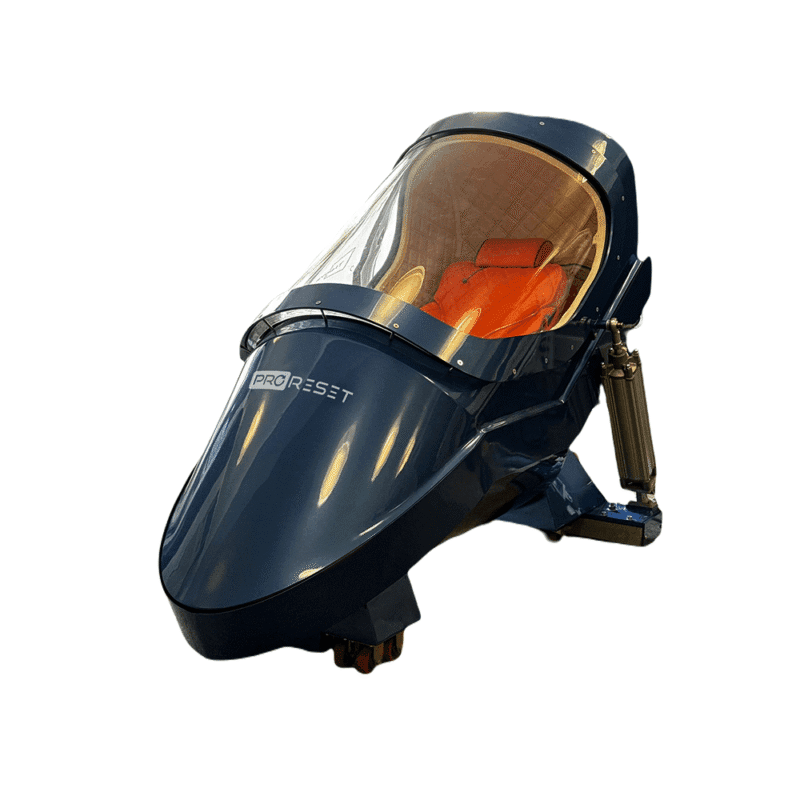

Apex Hypobaric Chamber
Apex is a professional hypobaric chamber designed for altitude training up to 8,000 meters, creating controlled hypoxic conditions through negative pressure to enhance endurance, performance, and hypoxia tolerance.
- Simulates altitude up to 8,000 meters (0.356 ATM)
- Hypobaric system with controlled negative pressure
- Designed for endurance, performance, and hypoxia training
- Integrated monitoring and tablet-based control system
Apex Hypobaric Chamber is an advanced altitude training system engineered to replicate the physiological stress of high-altitude environments in a fully controlled indoor setting. By simulating reduced barometric pressure, Apex allows users to safely experience hypoxic conditions equivalent to altitudes of up to 8,000 meters, supporting endurance development, oxygen efficiency, and physiological adaptation.
Unlike hyperbaric systems, Apex operates by creating negative pressure inside the chamber, reducing oxygen availability in a way that closely mimics real high-altitude exposure. This controlled hypoxic stress stimulates the production of erythropoietin (EPO), increases red blood cell count, and improves oxygen transport throughout the body. As a result, users develop greater tolerance to low-oxygen environments and enhanced aerobic performance.
Designed for elite athletes, altitude training programs, aerospace professionals, military applications, and advanced performance facilities, Apex combines precise pressure control with a comfortable, ergonomic interior. The integrated recliner seating system allows users to undergo altitude sessions in a relaxed, seated position while all parameters are continuously monitored and adjusted in real time.
| Feature/Specification | Apex Hypobaric Chamber |
| Simulated Altitude | Up to 8,000 meters |
| Negative Pressure | 0.356 ATM |
| Capacity | 1 person |
| Chamber Material | Aluminum (5000 series) |
| Overall Dimensions | |
| Length | 214 cm |
| Width | 117 cm |
| Height | 159 cm |
| Internal Length | 162 cm |
| Internal Volume | Approx. 0.9 m³ |
| System Weight | Approx. 600 kg |
| Minimum Installation Area | 550 cm × 280 cm |
| Certification | CE, ISO |
| Turbo Venturi System | |
| Airflow Capacity | 600 LPM |
| Power | 4 HP |
| Noise Level | Approx. 46 dB |
Hypobaric Altitude Simulation
Apex creates a reduced-pressure environment that accurately simulates real high-altitude conditions, enabling progressive and repeatable hypoxia training.
Controlled Hypoxic Adaptation
Gradual exposure to low oxygen levels supports safe acclimatization, improved oxygen utilization, increased red blood cell production, and enhanced endurance capacity.

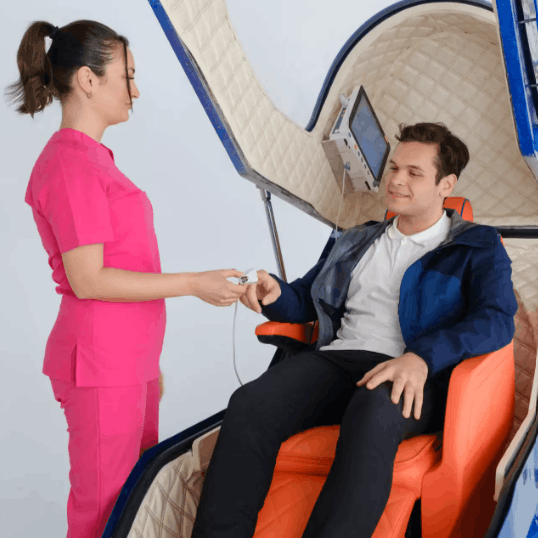

Integrated Monitoring System
Vital signs such as oxygen saturation, heart rate, and other physiological parameters can be continuously monitored during training sessions, supporting safety and protocol accuracy.
Tablet-Based Control
All session parameters are controlled via a tablet interface from inside or outside the chamber, allowing precise adjustment and real-time supervision.

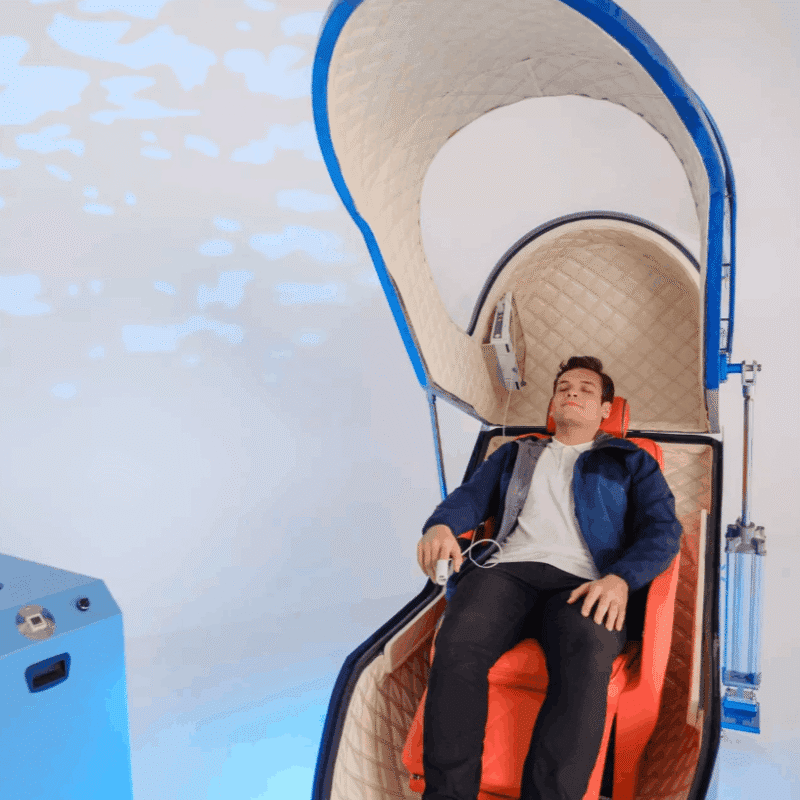

Ergonomic Recliner Seating
The integrated recliner chair provides comfort during extended sessions, supporting relaxation while the body undergoes intense physiological adaptation.
Quiet and Stable Operation
The Turbo Venturi system delivers negative pressure efficiently with low noise, ensuring a calm and focused training environment.
Customization Options
- Monitoring system configuration
- Interior finish and seating options
- Integration with performance testing or research environments
