Giza
The Giza is a modular four-seat chamber available in 1.5, 2.0, 2.4 ATA and 3.0 ATA pressure models. It offers spacious design, customizable options, and advanced automation for an effective and enjoyable group therapy experience.

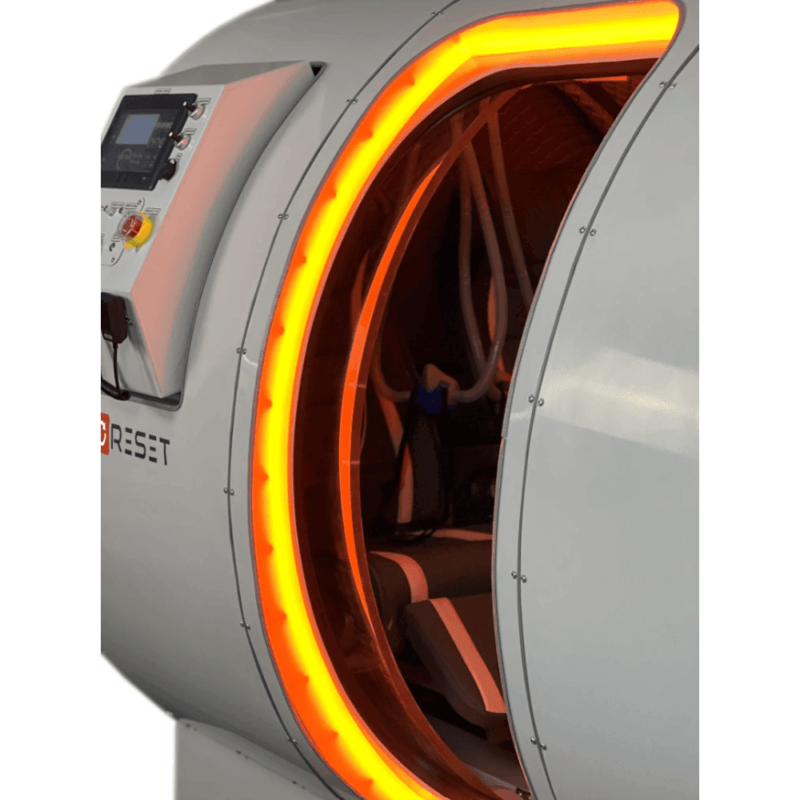

- Engineered with a modular design with each section less than a standard 80 cm wide doorway and assembled on location.
- External 21”/Internal 16” Tesla style touch screen control tablets with custom protocols & entertainment.
- Dual BIBS and Free-Flow oxygen delivery systems powered by two x 5.0 Bar 20 LPM (each) oxygen concentrators, with an optional chiller for enhanced comfort.
Giza

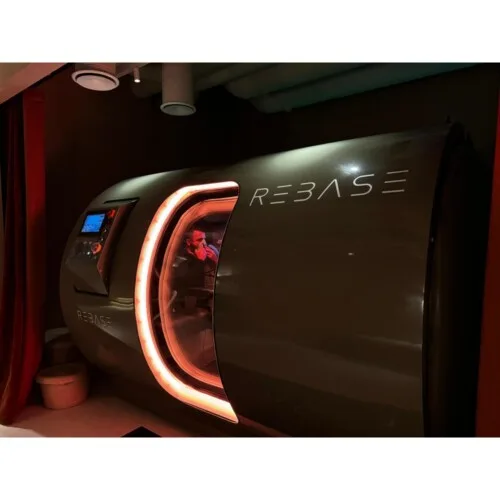

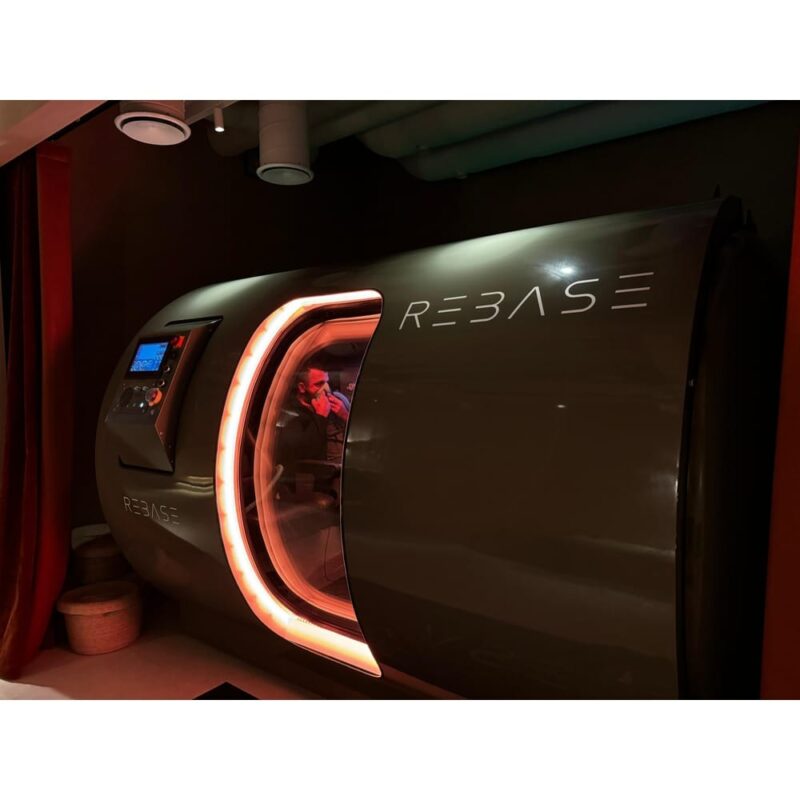

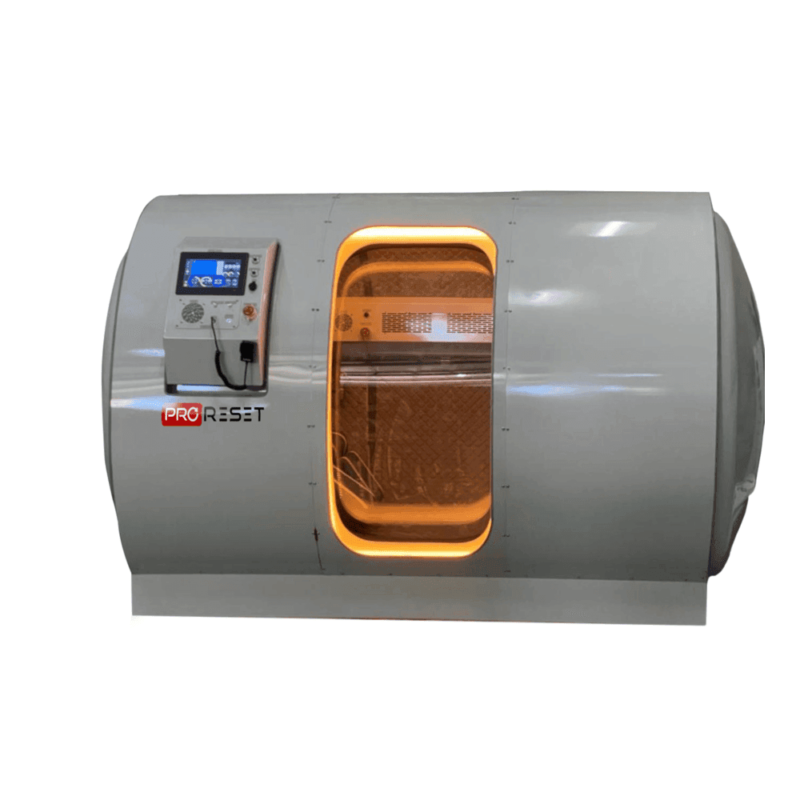

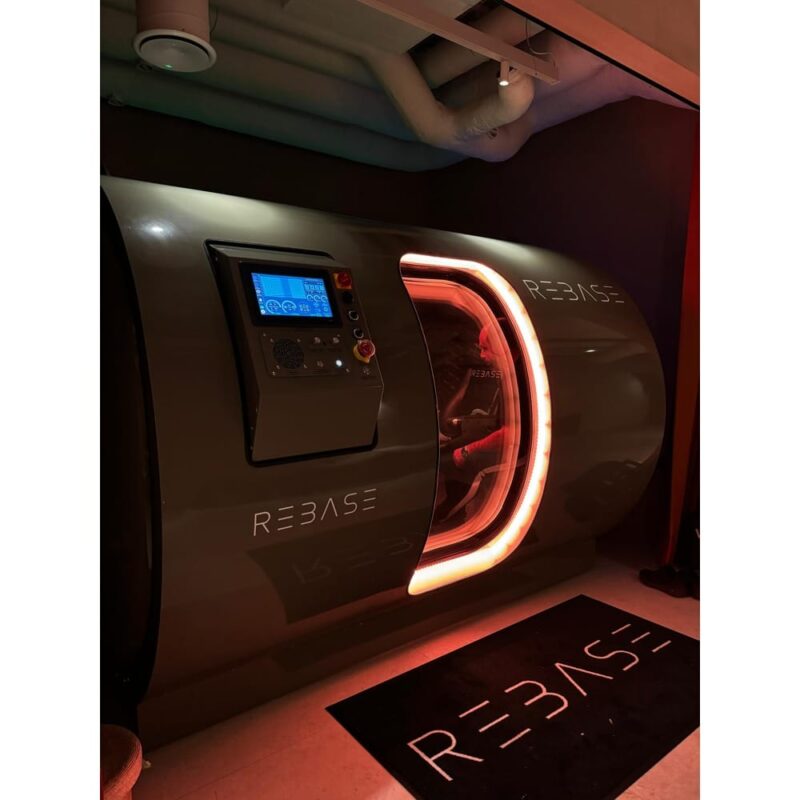

The Giza Multiplace Hyperbaric Chamber is designed to provide a spacious, comfortable, and effective hyperbaric oxygen therapy experience for up to four users. With pressure options of 1.5, 2.0, 2.4*, and 3.0* ATA, it is ideal for group therapy sessions focused on wellness, sports recovery, and clinical applications.

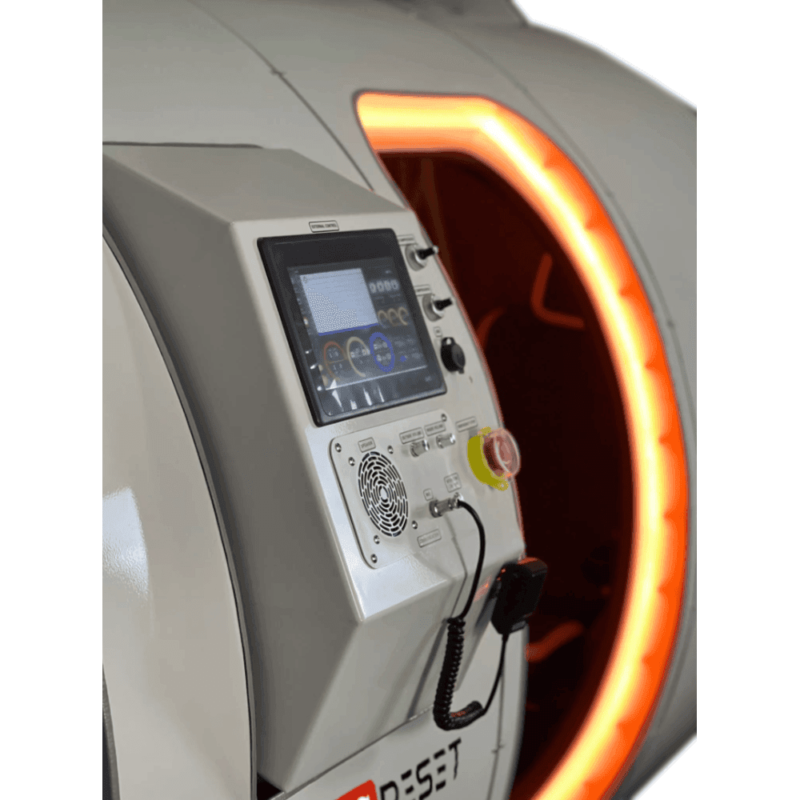

Users breathe high-purity oxygen through a dual BIBS mask or Free-Flow system (mask or cannula), powered by four x 5.0 Bar 20 LPM (each) oxygen concentrators* eliminating the need for oxygen tanks. A chiller* maintains a comfortable interior temperature during sessions. An internal/external Tesla style touch screen control tablet features custom protocols programming, real-time pressure, oxygen levels, speed, temperature, precise adjustments and session tracking. The chamber can be operated without external assistance.

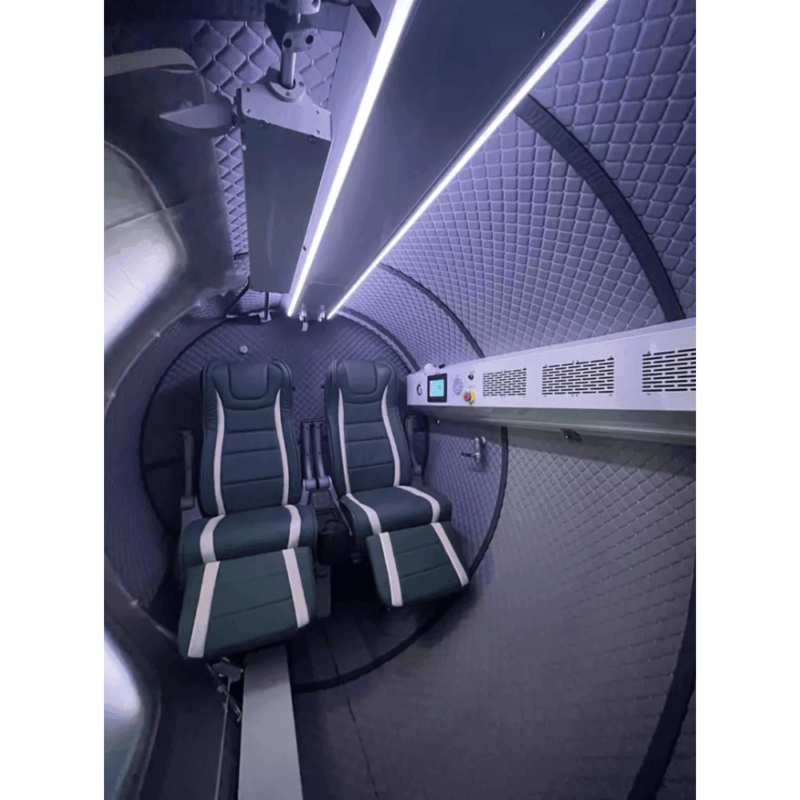

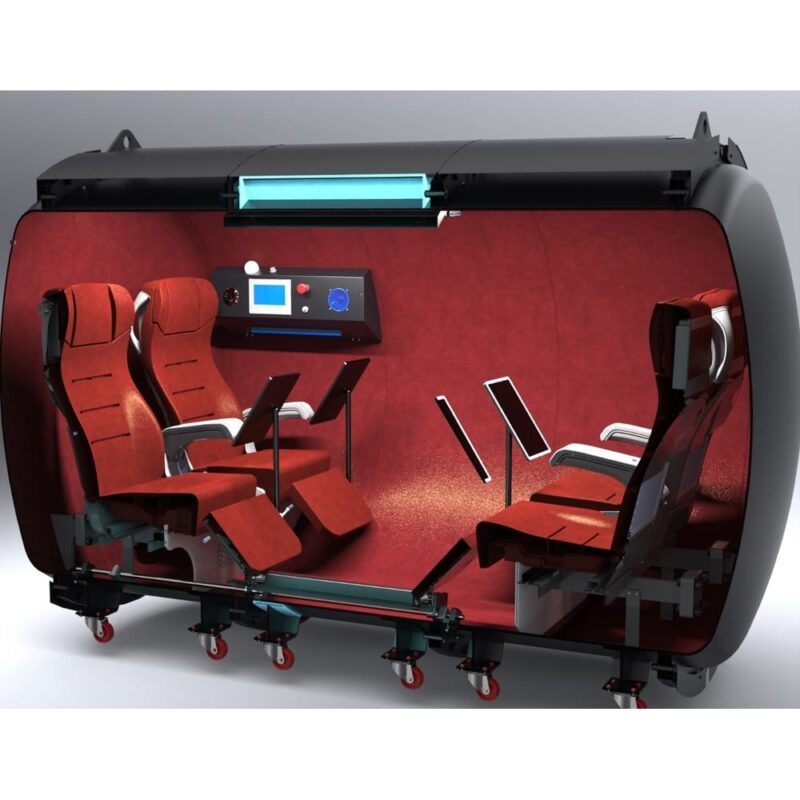

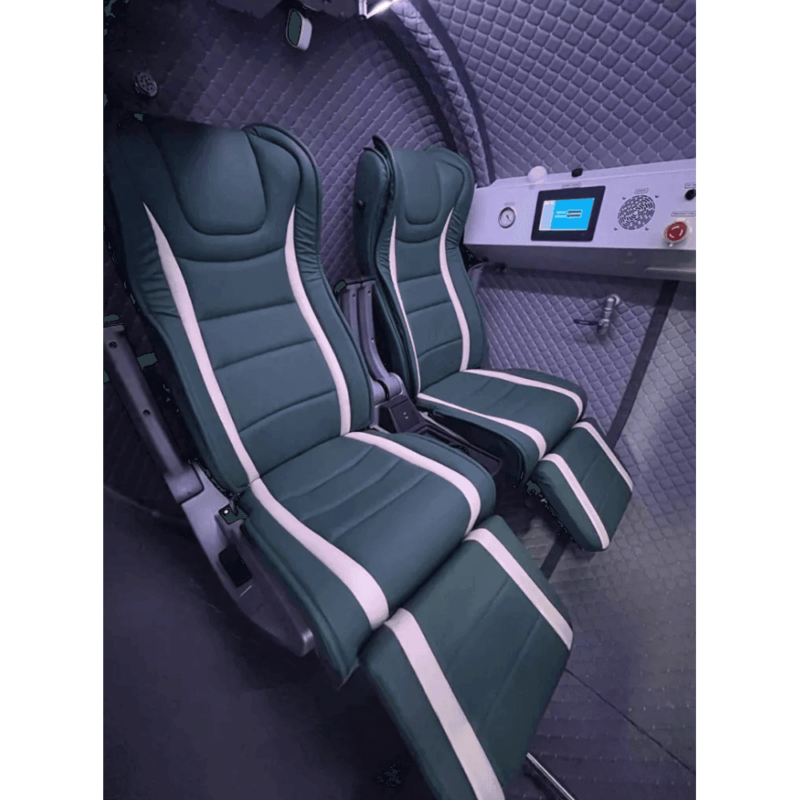

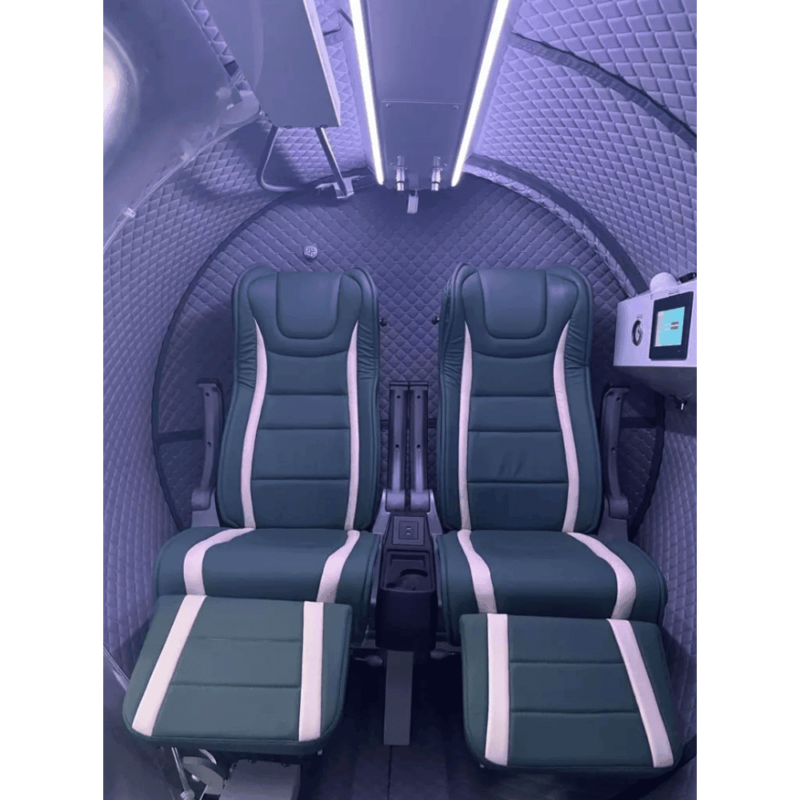

Inside, the Giza offers a choice of lounge chairs or Maybach* recliners. The spacious interior promotes relaxation and social connection, making it suitable for friends, family members, or teams undergoing therapy together. Advanced communication systems ensure clear interaction between users and operators, while personal entertainment systems personal tablets provide a first-class individual experience.
Giza’s range of custom options, including the choice of exterior color, accent finishes, interior lining, and eco-leather upholstery seats, allows clients to personalize the chamber to their aesthetic preferences or facility design.
* Optional
| Chamber Body | |
| Chamber Material (*|**) | Aero-Space Aluminium*|Steel** |
| Chamber Dimension (LxWxH) | 293 x 191 x 186 cm |
| Max Pressure (Custom#) | 1.5* | 2.0* | 2.4**# | 3.0**# ATA |
| Chamber Weight (ATA-Kg) | 1.5-800 | 2.0-850 | 2.4-1450 | 3.0-1950 |
| Modular Sections | 5 |
| Oxygen Delivery (Dual) | BIBS & Free Flow Mask or Cannula |
| Control Tablet (Dual) | External 21″/Internal 16″ Tesla Style Touch Screen |
| Module Functions | Customizable protocols, 2-Way communication |
| Ocupancy x Seating (Option*) | 2 x Luxury Lounge|Maybach Recliners* |
| Lighting | Adjustable LED RGB lights |
| Certifications Included | 2006/42/EC/ , 93/42/EEC (PED) |
| Certifications Optional | ASME PVHO-1, UKCA, MEDICAL CE |
| 3.0 ATA Medical CE (2.4price plus) | Extra |
| Customization Options | Paint RAL, Interior Lining, Maybach Recliners/Color |
| Compressor | |
| Dimensions (LxWxH) cm | 100x47x90cm |
| Weight (Kg) | 120 |
| Horse Power (HP) | 6 |
| Lpm Output | 650 |
| Noise Level (db) | 48 |
| Price | Included |
| Oxygen Concentrator | |
| Dimensions (LxWxH) | kg | 70x48x107cm | 155kg |
| Lpm | o2% | Pressure | 20Lpm | ±93% | 5 Bar |
| Watts | Horse Power (HP) | 2500W | 3.3hp |
| Noise Level (db) | ≤72 db |
| Units Required | 4 |
| Price/Unit | Extra |
| Chiller | |
| SMC Chiller (Japan) | 1kW@-10C|-10C-40C|50x38x64cm|40kg |
| Cooling Method | Air-cooled refrigeration |
| Price | Extra |
Dual Oxygen Delivery Systems
- Providing a customized user experience, the ProReset x HPOTech hyperbaric chambers include a unique dual oxygen delivery system with the flexibility to switch to either BIBS mask or Free Flow (mask or cannula) system.
Built-in Breathing System (BIBS)
- BIBS is an advanced oxygen delivery system providing oxygen on demand only when a user needs to inhale. Oxygen is provided through a mask and sourced from a high-efficiency oxygen concentrator delivering 20 LPM (liters per minute). The BIBS system delivers oxygen regardless of the user’s breathing patterns, making it ideal for individuals with respiratory challenges or limited lung capacity. BIBS helps prevent carbon dioxide (CO₂) buildup by maintaining constant airflow, enhancing safety during hyperbaric oxygen therapy sessions. Its user-friendly design requires minimal user interaction.
Free Flow Oxygen Delivery System
- The Free Flow system offers a simple and effective method for delivering oxygen in hyperbaric chambers. Utilizing a 20 Lpm oxygen concentrator, it provides a continuous oxygen stream delivered directly to the user’s respiratory system via a mask or nasal cannula offering flexibility and comfort during sessions. The Free Flow system is ideal for those seeking a more flexible experience. Its simplicity, ease of use, and low maintenance make it a practical option.
High Power Oxygen Concentrator
- The high-powered oxygen concentrator is designed to deliver 20 LPM of ±93% ±3% oxygen content at 5.0 Bar pressure to each user. This ensures that every breath taken within the hyperbaric chamber is enriched with the vital oxygen, maximizing the potential for wellness, recovery and performance.
Air Compressor
- The Air Compressor inflates the chamber body with filtered room air. The system compresses, maintains the user at the desired pressure, and decompresses the chamber when required. Chamber pressure and session duration are controlled by the user from the interior or from the operator from the exterior according to protocol recommendations.
Chiller System
- A chiller system for hyperbaric oxygen therapy (HBOT) is a component that helps regulate and maintain the temperature inside the chamber. When users are inside the chamber, the increased atmospheric pressure can cause the temperature to rise. The chiller system counteracts this effect by efficiently cooling the chamber and maintaining an optimal temperature for a comfortable hyperbaric experience.
The Giza is available as a wellness system or with 3.0 ATA medical CE certification as a medical device.
Optional Certifications: ASME PVHO-1, UKCA, MEDICAL CE
With a choice of over 170 RAL color codes, the Giza can be fully customized with the client’s choice of exterior color, accent finishes, interior lining and Maybach reclining seats allowing for a personalized and functional style suited to individual preferences or interior design concept of any home, wellness centre or clinic.
Customization Options: 3.0 ATA, Exterior Paint Color (RAL Codes), Interior Lining (Riva Codes), Maybach Recliners or Lounge Seat (Modena or Polisoft).
