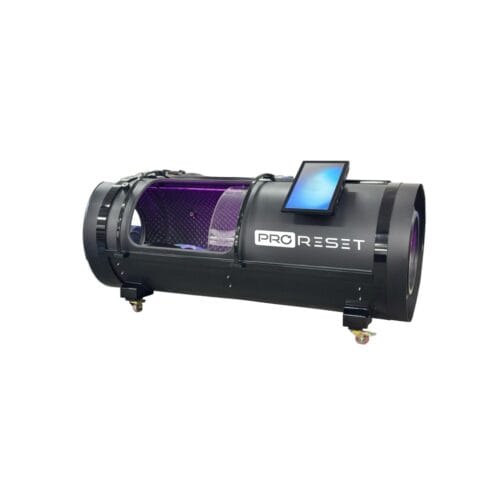

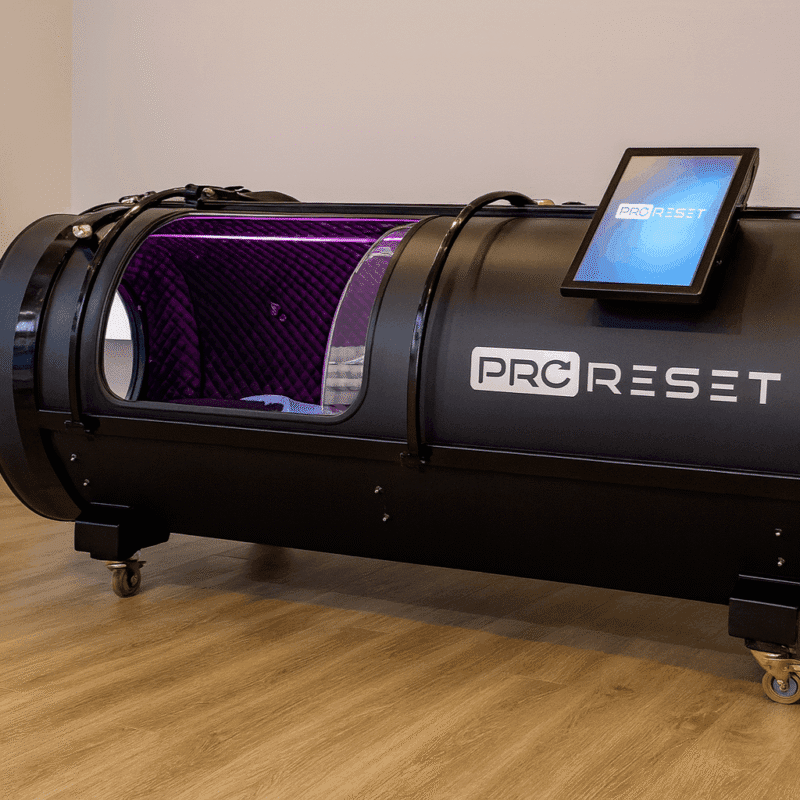

Trojan
The Trojan is a medical-grade chamber available in 1.5, 2.0, 2.4 & 3.0 ATA pressure versions. It offers a spacious interior with advanced automation and many customizable options.
- External 21”/Internal 16” Tesla style touch screen control modules with custom protocols, automation controls & entertainment.
- Dual oxygen delivery systems through BIBS mask and Free-Flow mask or cannula powered by a 5.0 Bar 20 LPM oxygen concentrator and a chiller for superb comfort.
- Customizable exterior colors, accent finishes, and interior lining to fit any style and design.
Trojan
The Trojan is a wellness or medical-grade* system designed to enhance hyperbarics at home or in a clinic. With 1.5, 2.0, 2.4, 3.0* ATA pressure options, it is built for efficiency, ease of use, and user comfort. Powered by a 5.0 Bar 20 LPM oxygen concentrator*, it provides oxygen through a dual BIBS mask and Free-Flow system (mask or nasal cannula), eliminating the need for oxygen tanks. A chiller* maintains a comfortable interior temperature during sessions.
An internal 16”/external 21” Tesla style touch screen control tablet features custom protocols programming, real-time pressure, oxygen levels, speed, temperature, precise adjustments and session tracking. The chamber can be operated without external assistance.

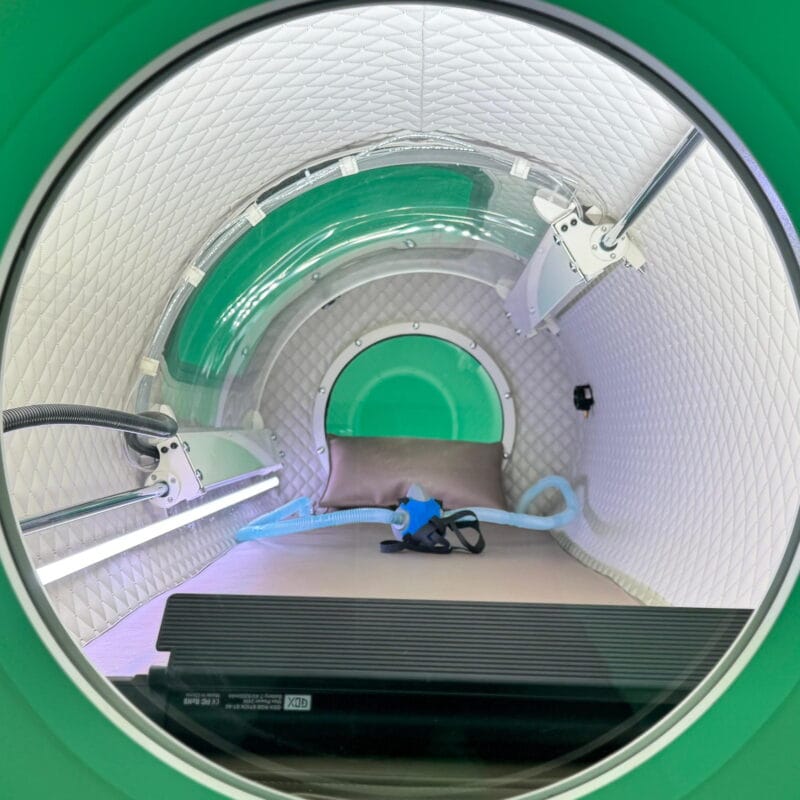

Inside, the Trojan offers an ergonomic mattress, adjustable LED lighting, and continuous ventilation for a controlled and refreshing environment. The eco-leather interior enhances both aesthetics and comfort, while the integrated communication system ensures clear and reliable interaction with the outside world. Safety features include automated session monitoring and emergency decompression controls.
The Trojan can be fully customized with the client’s choice of exterior color, accent finishes, and interior lining, allowing for a personalized and functional style suited to individual preferences or interior design.
* Optional
| Chamber Body | |
| Chamber Material (*|**) | Aero-Space Aluminium*|Steel** |
| Chamber Dimension (LxWxH) | 235 x 83 x109 cm |
| Max Pressure (Custom#) | 1.5* | 2.0* | 2.4* | 3.0**#ATA |
| Chamber Weight (ATA-Kg) | 1.5-150 | 2.0-180 | 2.4-400 | 3.0-600 |
| Modular Sections | No |
| Oxygen Delivery (Dual) | BIBS & Free Flow Mask or Cannula |
| Control Tablet (Dual) | External 21″/Internal 16″ Tesla Style Touch Screen |
| Module Functions | Customizable protocols, 2-Way communication |
| Ocupancy x Seating (Option*) | 1 x Mattress |
| Lighting | Adjustable LED RGB Lights |
| Certifications Included | 2006/42/EC/ , 93/42/EEC (PED) |
| Certifications Optional | ASME PVHO-1, UKCA, MEDICAL CE |
| Compressor | |
| Dimensions (LxWxH) cm | 61x36x67 |
| Weight (Kg) | 45 |
| Horse Power (HP) | 2 |
| Lpm Output | 250 |
| Noise Level (db) | 46 |
| Price | Included |
| Oxygen Concentrator | |
| Dimensions (LxWxH) | kg | 70x48x107cm | 155kg |
| Lpm | o2% | Pressure | 20Lpm | ±93% | 5 Bar |
| Watts | Horse Power (HP) | 2500W | 3.3hp |
| Noise Level (db) | ≤72 db |
| Units Required | 1 |
| Price/Unit | Extra |
| Chiller | |
| SMC Chiller (Japan) | 1kW@-10C|-10C-40C|50x38x64cm|40kg |
| Cooling Method | Air-cooled refrigeration |
| Price | Extra |
Dual Oxygen Delivery Systems
- Providing a customized user experience, the ProReset x HPOTech hyperbaric chambers include a unique dual oxygen delivery system with the flexibility to switch to either BIBS mask or Free Flow (mask or cannula) system.
Built-in Breathing System (BIBS)
- BIBS is an advanced oxygen delivery system providing oxygen on demand only when a user needs to inhale. Oxygen is provided through a mask and sourced from a high-efficiency oxygen concentrator delivering 20 LPM (liters per minute). The BIBS system delivers oxygen regardless of the user’s breathing patterns, making it ideal for individuals with respiratory challenges or limited lung capacity. BIBS helps prevent carbon dioxide (CO₂) buildup by maintaining constant airflow, enhancing safety during hyperbaric oxygen therapy sessions. Its user-friendly design requires minimal user interaction.
Free Flow Oxygen Delivery System
- The Free Flow system offers a simple and effective method for delivering oxygen in hyperbaric chambers. Utilizing a 20 Lpm oxygen concentrator, it provides a continuous oxygen stream delivered directly to the user’s respiratory system via a mask or nasal cannula offering flexibility and comfort during sessions. The Free Flow system is ideal for those seeking a more flexible experience. Its simplicity, ease of use, and low maintenance make it a practical option.
High Power Oxygen Concentrator
- The high-powered oxygen concentrator is designed to deliver 20 LPM of ±93% ±3% oxygen content at 5.0 Bar pressure to each user. This ensures that every breath taken within the hyperbaric chamber is enriched with the vital oxygen, maximizing the potential for wellness, recovery and performance.
Air Compressor
- The Air Compressor inflates the chamber body with filtered room air. The system compresses, maintains the user at the desired pressure, and decompresses the chamber when required. Chamber pressure and session duration are controlled by the user from the interior or from the operator from the exterior according to protocol recommendations.
Chiller System
- A chiller system for hyperbaric oxygen therapy (HBOT) is a component that helps regulate and maintain the temperature inside the chamber. When users are inside the chamber, the increased atmospheric pressure can cause the temperature to rise. The chiller system counteracts this effect by efficiently cooling the chamber and maintaining an optimal temperature for a comfortable hyperbaric experience.
The Trojan is available as a wellness system or with medical CE certification as a medical device.
Optional Certifications: ASME PVHO-1, UKCA, MEDICAL CE

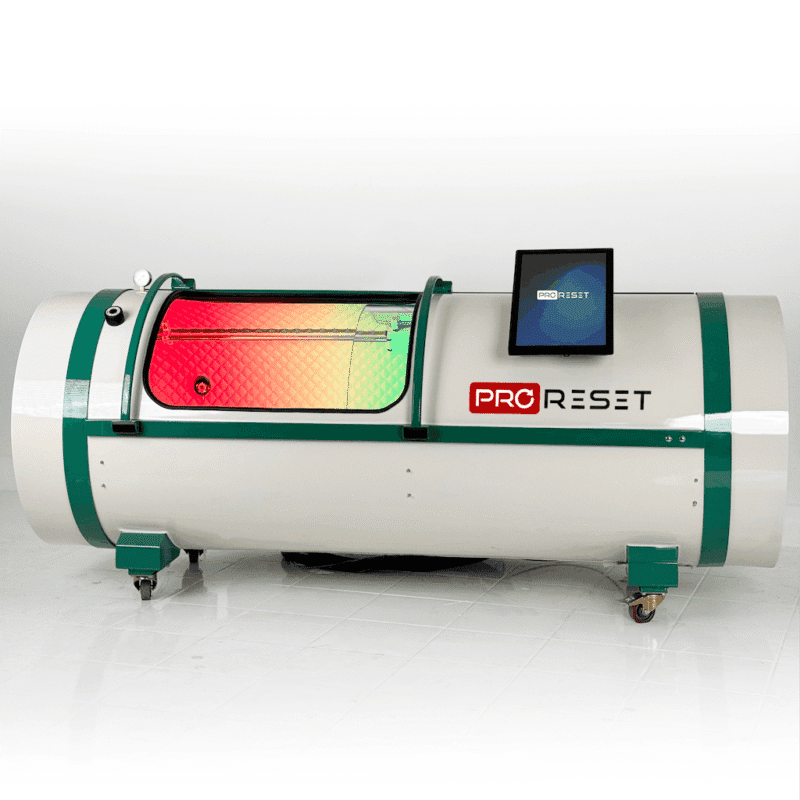

With a choice of over 170 RAL color codes, the Trojan can be fully customized with the client’s choice of exterior color, accent finishes, and interior lining, allowing for a personalized and functional style suited to individual preferences or interior design concept of any home, wellness centre or clinic.
Customization Options: Exterior Paint Color (RAL Codes), Interior Lining (Riva Codes)
