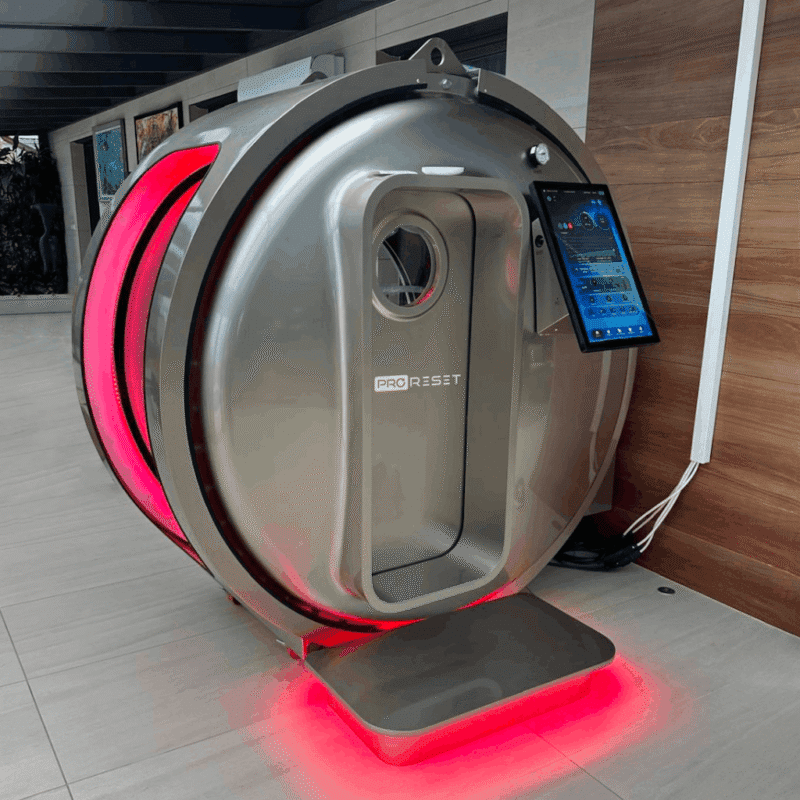

Zeugma
Adopted by the likes of biohacker Bryan Johnson, the Zeugma is a luxurious and transparent modular seated monoplace chamber available in 1.5, 2.0, 2.4 & optional 3.0 ATA pressure versions.
- Oversized side and front acrylic windows, the Zeugma offers a comfortable and transparent seated hyperbaric experience.

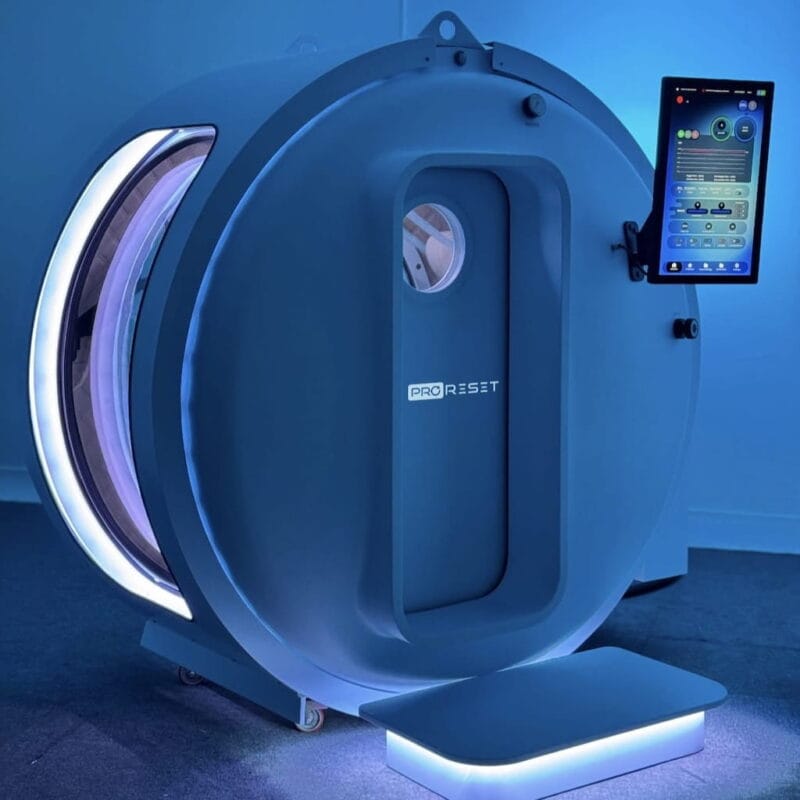

- External 21”/Internal 16” Tesla style touch screen control modules with custom protocols, automation & entertainment.
- Dual oxygen delivery systems through BIBS mask and Free-Flow mask or cannula powered by a 5.0 Bar 20 LPM oxygen concentrator with a chiller for superb comfort.
Zeugma
The Zeugma is a state-of-the-art hyperbaric chamber offering four model types with 1.5, 2.0, 2.4, 3.0* ATA pressure options. Engineered in three modular sections, each less than a standard 80 cm wide doorway, allowing for disassembly, entry and on-site assembly without removing doors or walls.

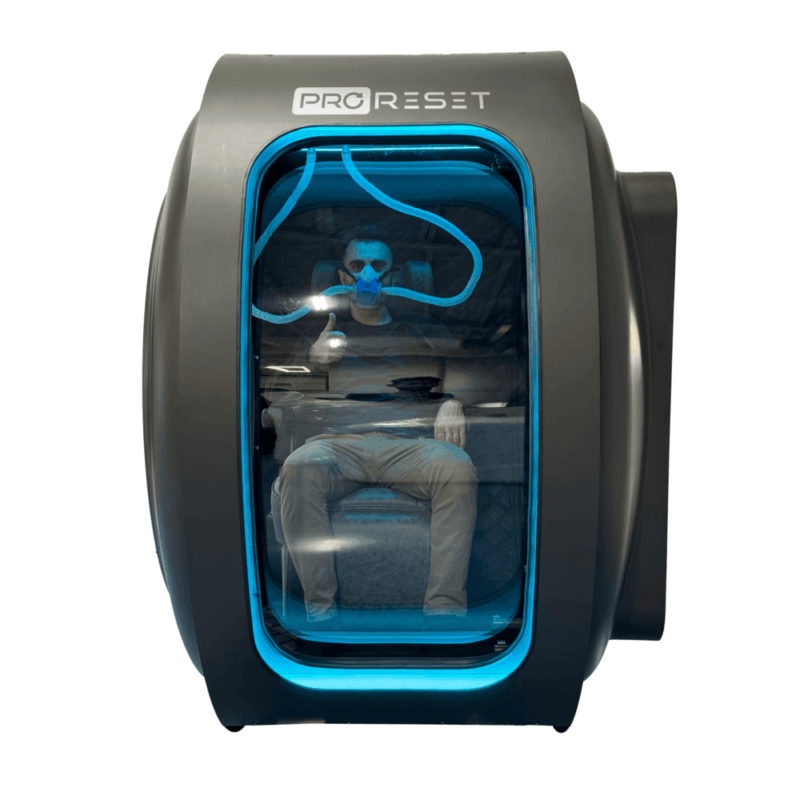

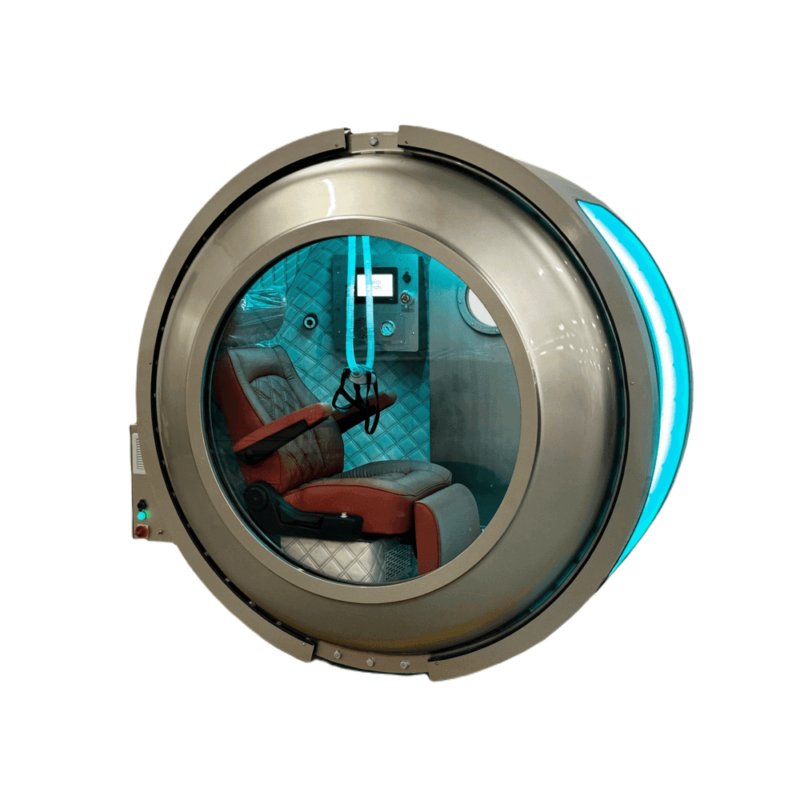

Among many features is an oversized panoramic front and side window, ergonomic seating, and a spacious interior. Powered by a 5.0 Bar 20 LPM oxygen concentrator* It provides oxygen through a dual BIBS mask and Free-Flow system (masks or nasal cannula) eliminating the need for oxygen tanks. A chiller* maintains a comfortable interior temperature during sessions. An internal/external Tesla style touch screen control tablet features custom protocols programming, real-time pressure, oxygen levels, speed and precise adjustments. The chamber can be operated without external assistance.

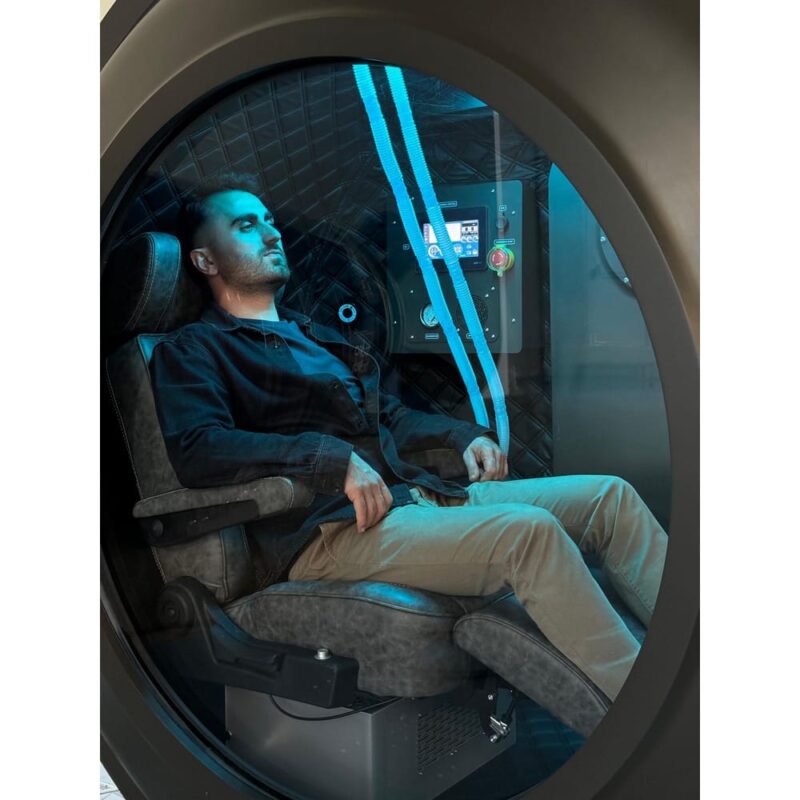

Inside, users enjoy adjustable LED lighting, continuous ventilation, and a luxurious eco-leather interior for enhanced comfort. The panoramic windows alleviate feelings of confinement, and dual communication systems keep patients and operators connected throughout sessions. Zeugma’s intelligent automation optimizes safety, efficiency, and user experience, making it a leading choice for reliable hyperbaric therapy.

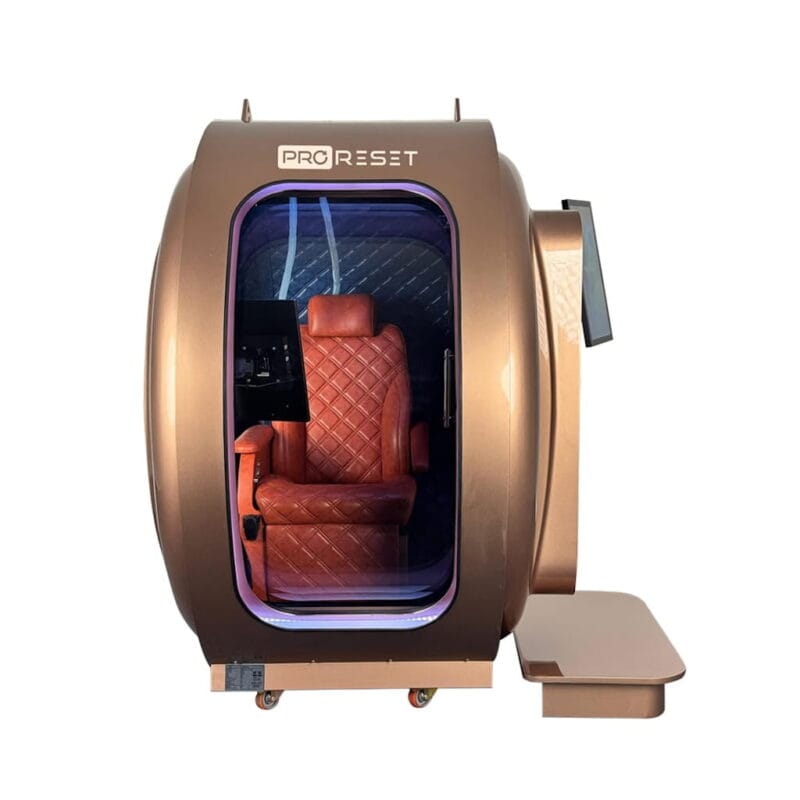

The Zeugma offers a range of custom options, including the choice of exterior color, accent finishes, interior lining, and a lounge seat, allowing clients to personalize the chamber to their aesthetic preferences and comfort needs.
* Optional
| Chamber Body | |
| Chamber Material (*|**) | Aero-Space Aluminium*|Steel** |
| Chamber Dimension (LxWxH) | 134x199x186 cm |
| Max Pressure (Custom#) | 1.5* | 2.0* | 2.4** | 3.0**# ATA |
| Chamber Weight (ATA-Kg) | 1.5-350 | 2.0-400 | 2.4-700 | 3.0-985 |
| Modular Sections | 3 |
| Oxygen Delivery (Dual) | BIBS & Free Flow Mask or Cannula |
| Control Tablet (Dual) | External 21″/Internal 16″ Tesla Style Touch Screen |
| Module Functions | Customizable protocols, 2-Way communication |
| Occupancy x Seating (Option*) | 2 x Luxury Recliner & Foot Support|1 |
| Lighting | Adjustable LED RGB lights |
| Certifications Included | 2006/42/EC/ , 93/42/EEC (PED) |
| Certifications Optional | ASME PVHO-1, UKCA, MEDICAL CE |
| Customization Options | Paint RAL, Interior Lining, Lounge Chair |
| Compressor | |
| Dimensions (LxWxH) cm | 100x50x80cm |
| Weight (Kg) | 67 |
| Horse Power (HP) | 4 |
| Lpm Output | 564 |
| Noise Level (db) | 48 |
| Price | Included |
| Oxygen Concentrator | |
| Dimensions (LxWxH) | kg | 70x48x107cm | 155kg |
| Lpm | o2% | Pressure | 20Lpm | ±93% | 5 Bar |
| Watts | Horse Power (HP) | 2500W | 3.3hp |
| Noise Level (db) | ≤72 db |
| Units Required | 1 |
| Price/Unit | Extra |
| Chiller | |
| SMC Chiller (Japan) | 1kW@-10C|-10C-40C|50x38x64cm|40kg |
| Cooling Method | Air-cooled refrigeration |
| Price | Extra |
Dual Oxygen Delivery Systems
- Providing a customized user experience, the ProReset x HPOTech hyperbaric chambers include a unique dual oxygen delivery system with the flexibility to switch to either BIBS mask or Free Flow (mask or cannula) system.
Built-in Breathing System (BIBS)

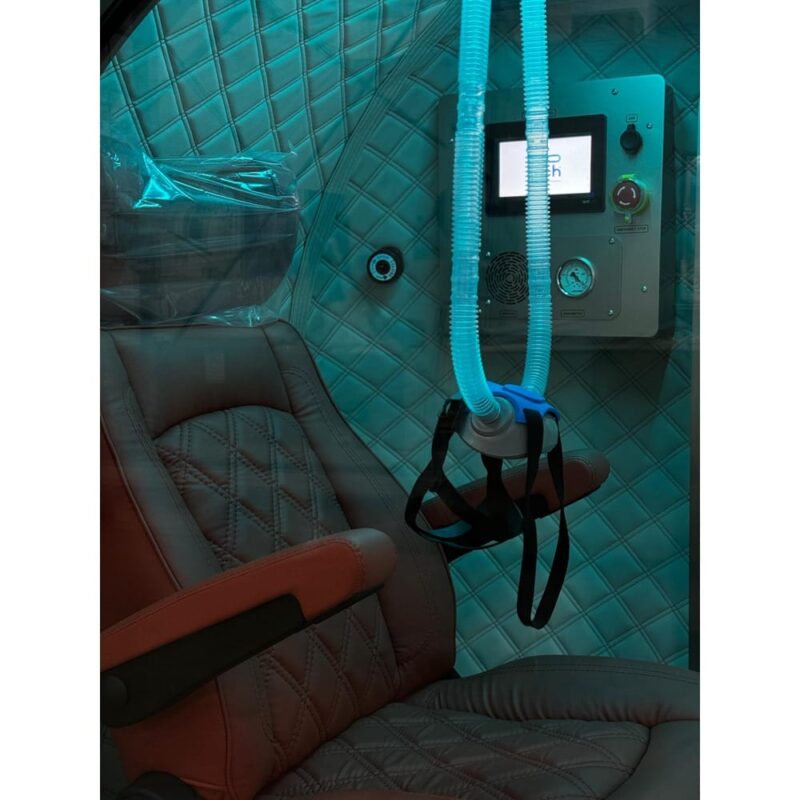

- BIBS is an advanced oxygen delivery system providing oxygen on demand only when a user needs to inhale. Oxygen is provided through a mask and sourced from a high-efficiency oxygen concentrator delivering 20 LPM (liters per minute). The BIBS system delivers oxygen regardless of the user’s breathing patterns, making it ideal for individuals with respiratory challenges or limited lung capacity. BIBS helps prevent carbon dioxide (CO₂) buildup by maintaining constant airflow, enhancing safety during hyperbaric oxygen therapy sessions. Its user-friendly design requires minimal user interaction.
Free Flow Oxygen Delivery System
- The Free Flow system offers a simple and effective method for delivering oxygen in hyperbaric chambers. Utilizing a 20 Lpm oxygen concentrator, it provides a continuous oxygen stream delivered directly to the user’s respiratory system via a mask or nasal cannula offering flexibility and comfort during sessions. The Free Flow system is ideal for those seeking a more flexible experience. Its simplicity, ease of use, and low maintenance make it a practical option.
High Power Oxygen Concentrator

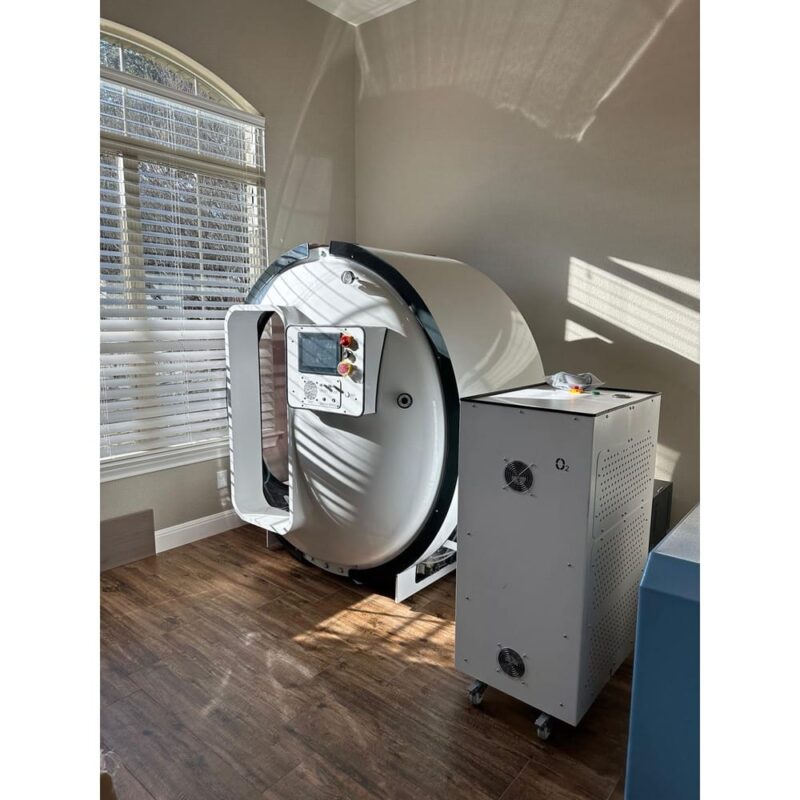

- The high-powered oxygen concentrator is designed to deliver 20 LPM of ±93% ±3% oxygen content at 5.0 Bar pressure to each user. This ensures that every breath taken within the hyperbaric chamber is enriched with the vital oxygen, maximizing the potential for wellness, recovery and performance.
Air Compressor
- The Air Compressor inflates the chamber body with filtered room air. The system compresses, maintains the user at the desired pressure, and decompresses the chamber when required. Chamber pressure and session duration are controlled by the user from the interior or from the operator from the exterior according to protocol recommendations.
Chiller System
- A chiller system for hyperbaric oxygen therapy (HBOT) is a component that helps regulate and maintain the temperature inside the chamber. When users are inside the chamber, the increased atmospheric pressure can cause the temperature to rise. The chiller system counteracts this effect by efficiently cooling the chamber and maintaining an optimal temperature for a comfortable hyperbaric experience.
The Zeugma is available as a wellness system or with medical CE certification as a medical device.
Optional Certifications: ASME PVHO-1, UKCA, MEDICAL CE

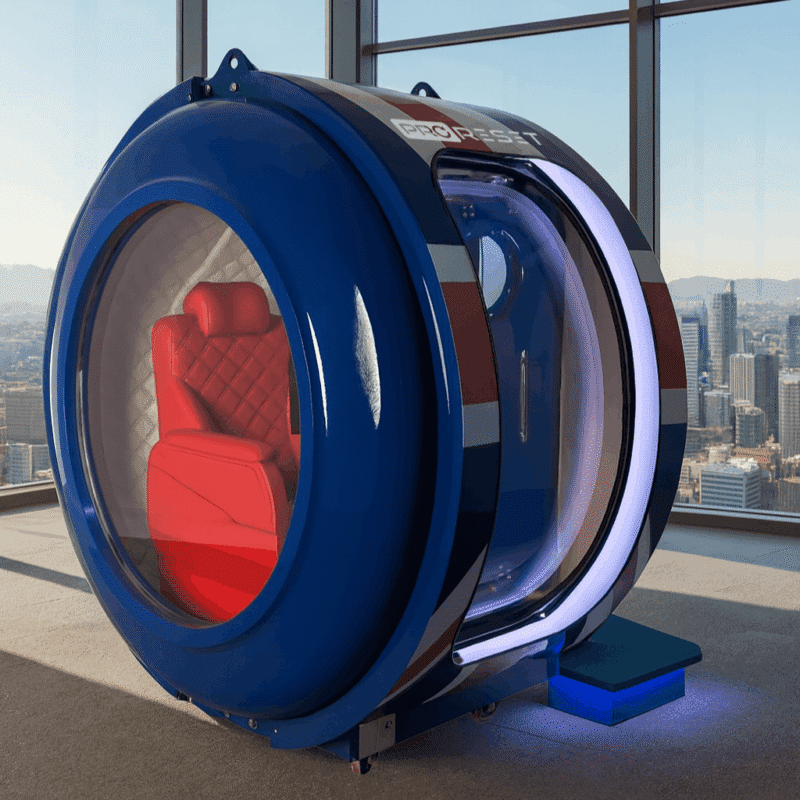

With a choice of over 170 RAL color codes, the Zeugma can be fully customized with the client’s choice of exterior color, accent finishes, interior lining and lounge seat allowing for a personalized and functional style suited to individual preferences or interior design concept of any home, wellness centre or clinic.
Customization Options: Exterior Paint Color (RAL Codes), Interior Lining (Riva Codes), Lounge Seat (Modena or Polisoft).
