Matrix
Matrix is a cube-shaped chamber for one or two users available in 1.5, 2.0, 2.4, and 3.0 ATA pressure versions. It offers a spacious interior, optional electric door and wheelchair accessibility, large screen TV and customizable colors.
- External 21”/Internal 16” Tesla style touch screen control tablets with custom protocols & entertainment.
- Dual oxygen delivery systems through BIBS mask and Free-Flow mask or cannula powered by a 5.0 Bar 20 LPM oxygen concentrator with a chiller for optimal comfort.
- Customizable exterior color, interior lining, seating options (Maybach recliners), and entertainment systems to fit any style and design.
Matrix

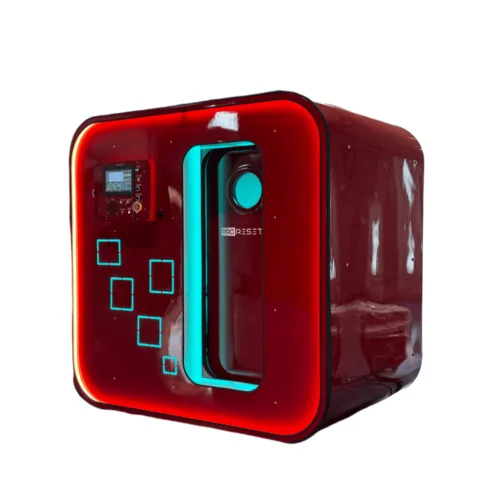

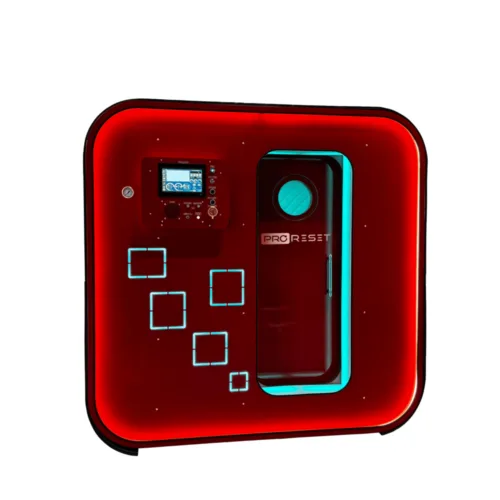

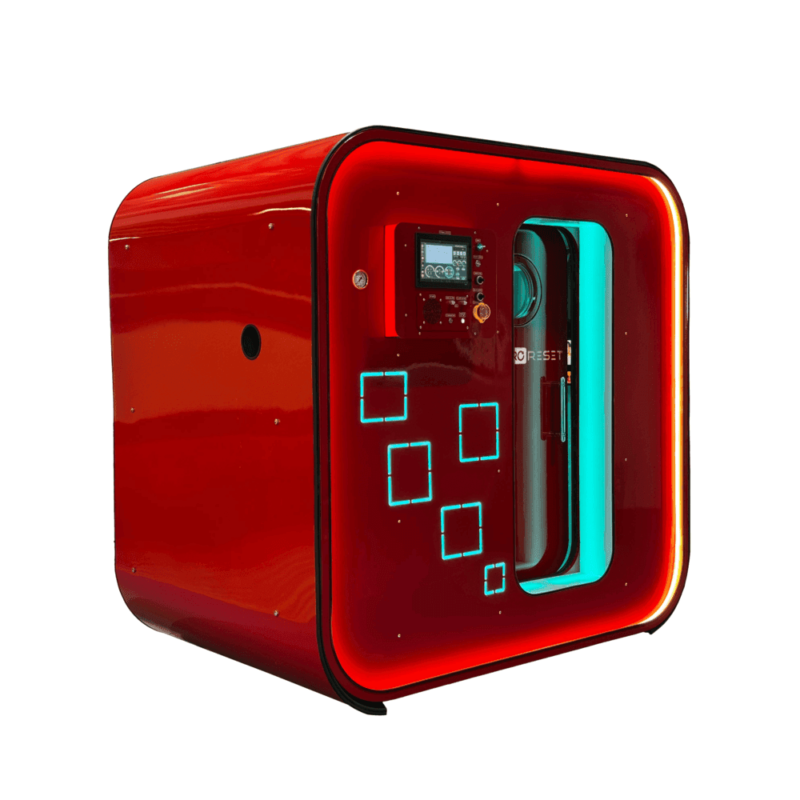

The Matrix is a top-of-range cube-shaped HBOT system designed as a one or two seater with a spacious interior and advanced automation. Available with pressure options of 1.5, 2.0, 2.4, and 3.0* ATA, it provides spacious and efficient hyperbaric sessions. The Matrix can be custom configured with an electric door and optional wheelchair ramp for easy accessibility. Powered by a 5.0 Bar 20 LPM (each) oxygen concentrator*, it delivers oxygen through a dual BIBS mask and Free-Flow system compatible with masks or nasal cannulas, eliminating the need for oxygen tanks.
An optional chiller* maintains a comfortable interior temperature. An internal/external Tesla style touch screen control tablet features custom protocols programming, real-time pressure, oxygen levels, speed, temperature, precise adjustments and session tracking. The chamber can be operated without external assistance.

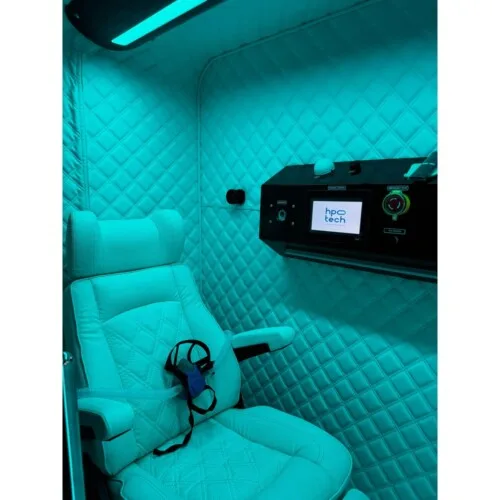

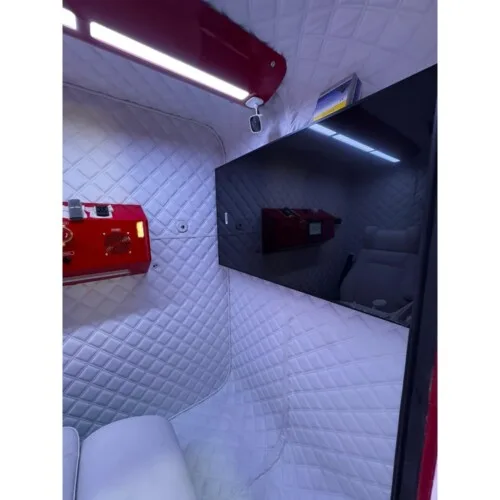

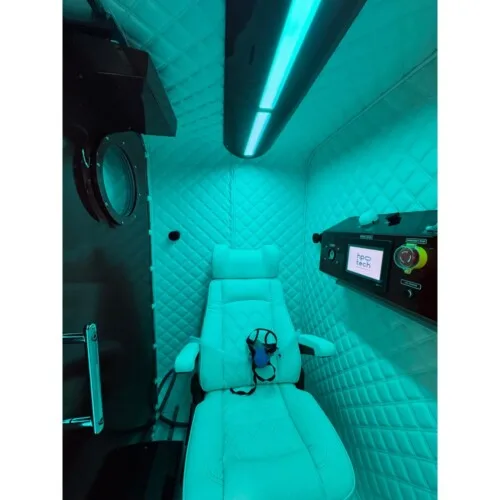

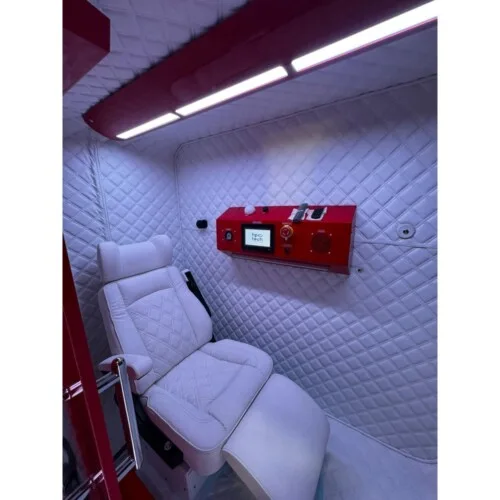

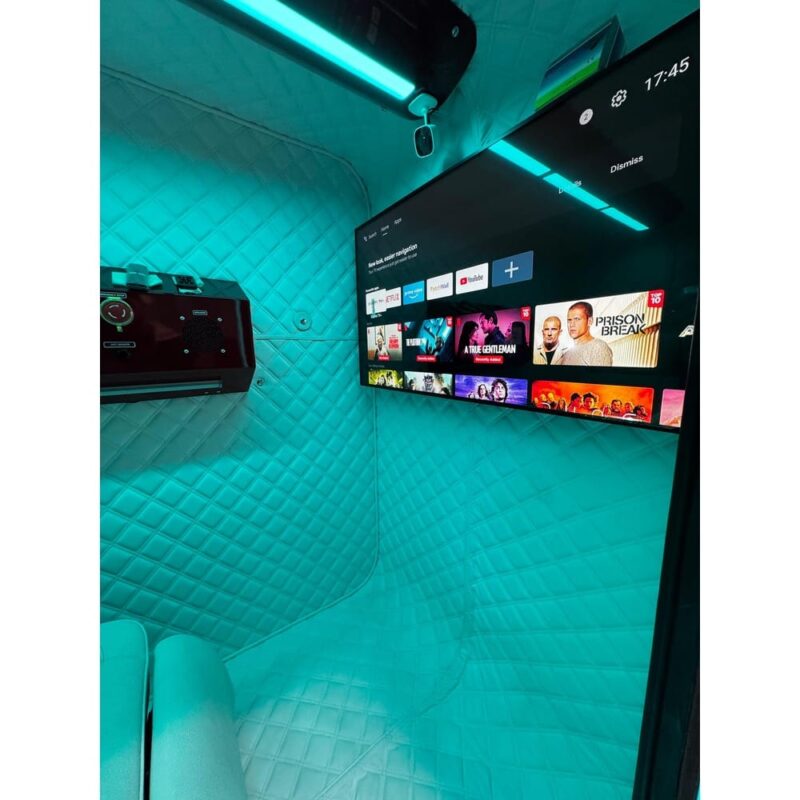

Inside, users benefit from ergonomic seating with options for lounge seats or electric Maybach recliners, adjustable LED lighting, continuous ventilation, and a high-quality eco-leather interior customizable in various colors. Dual communication systems ensure constant contact with operators, and the integrated entertainment system offers large-screen TVs or tablets for a more personalized experience.
Matrix’s intelligent automation and wide range of customizations, including exterior colors, interior linings, and seat colors allow clients to personalize the chamber to their preferences.
* Optional
| MATRIX UNO | MATRIX DOS | |
| Chamber Body | ||
| Chamber Material (*|**) | Steel** & Port Hole | Steel** & Port Hole |
| Chamber Dimension (LxWxH) | 175 x 145 x 180 cm | 175 x 145 x180 cm |
| Max Pressure (Custom#) | 1.5** | 2.0** | 2.4** | 3.0**# ATA | 1.5** | 2.0** | 2.4** | 3.0**# ATA |
| Chamber Weight (ATA-Kg) | 1.5-1200 | 2.0-1500 | 2.4-2000 | 3.0-2400 | 1.5-2500 | 2.0-3000 | 2.4-4000 | 3.0-4800 |
| Modular Sections | No | No |
| Oxygen Delivery (Dual) | BIBS & Free Flow Mask or Cannula | BIBS & Free Flow Mask or Cannula |
| Control Tablet (Dual) | External 7″/Internal 10″ Tesla Style Touch Screen | External 7″/Internal 10″ Tesla Style Touch Screen |
| Module Functions | Customizable protocols, 2-Way communication | Customizable protocols, 2-Way communication |
| Ocupancy x Seating (Option*) | 1|2 x Luxury Recliner & Foot Support | 1|2 x Luxury Recliner & Foot Support |
| Lighting | Adjustable LED RGB lights | Adjustable LED RGB lights |
| Certifications Included | 2006/42/EC/ , 93/42/EEC (PED) | 2006/42/EC/ , 93/42/EEC (PED) |
| Certifications Optional | ASME PVHO-1, UKCA, MEDICAL CE | ASME PVHO-1, UKCA, MEDICAL CE |
| 3.0 ATA Medical CE | Extra | Extra |
| Customization Options | Paint RAL, Interior Lining, Lounge Chair | Paint RAL, Interior Lining, Lounge Chair |
| Compressor | ||
| Dimensions (LxWxH) cm | 100x47x90cm | 100x50x80cm |
| Weight (Kg) | 120 | 67 |
| Horse Power (HP) | 6 | 4 x 2 Compressors |
| Lpm Output | 650 | 564 |
| Noise Level (db) | 48 | 48 |
| Price | Included | Included |
| Oxygen Concentrator | ||
| Dimensions (LxWxH) | kg | 70x48x107cm | 155kg | 70x48x107cm | 155kg |
| Lpm | o2% | Pressure | 20Lpm | ±93% | 5 Bar | 20Lpm | ±93% | 5 Bar |
| Watts | Horse Power (HP) | 2500W | 3.3hp | 2500W | 3.3hp |
| Noise Level (db) | ≤72 db | ≤72 db |
| Units Required | 1 | 2 |
| Price/Unit | Extra | Extra |
| Chiller | ||
| SMC Chiller (Japan) | 1kW@-10C|-10C-40C|50x38x64cm|40kg | 1kW@-10C|-10C-40C|50x38x64cm|40kg |
| Cooling Method | Air-cooled refrigeration | Air-cooled refrigeration |
| Price | Extra | Extra |
Dual Oxygen Delivery Systems
- Providing a customized user experience, the ProReset x HPOTech hyperbaric chambers include a unique dual oxygen delivery system with the flexibility to switch to either BIBS mask or Free Flow (mask or cannula) system.
Built-in Breathing System (BIBS)
- BIBS is an advanced oxygen delivery system providing oxygen on demand only when a user needs to inhale. Oxygen is provided through a mask and sourced from a high-efficiency oxygen concentrator delivering 20 LPM (liters per minute). The BIBS system delivers oxygen regardless of the user’s breathing patterns, making it ideal for individuals with respiratory challenges or limited lung capacity. BIBS helps prevent carbon dioxide (CO₂) buildup by maintaining constant airflow, enhancing safety during hyperbaric oxygen therapy sessions. Its user-friendly design requires minimal user interaction.
Free Flow Oxygen Delivery System
- The Free Flow system offers a simple and effective method for delivering oxygen in hyperbaric chambers. Utilizing a 20 Lpm oxygen concentrator, it provides a continuous oxygen stream delivered directly to the user’s respiratory system via a mask or nasal cannula offering flexibility and comfort during sessions. The Free Flow system is ideal for those seeking a more flexible experience. Its simplicity, ease of use, and low maintenance make it a practical option.

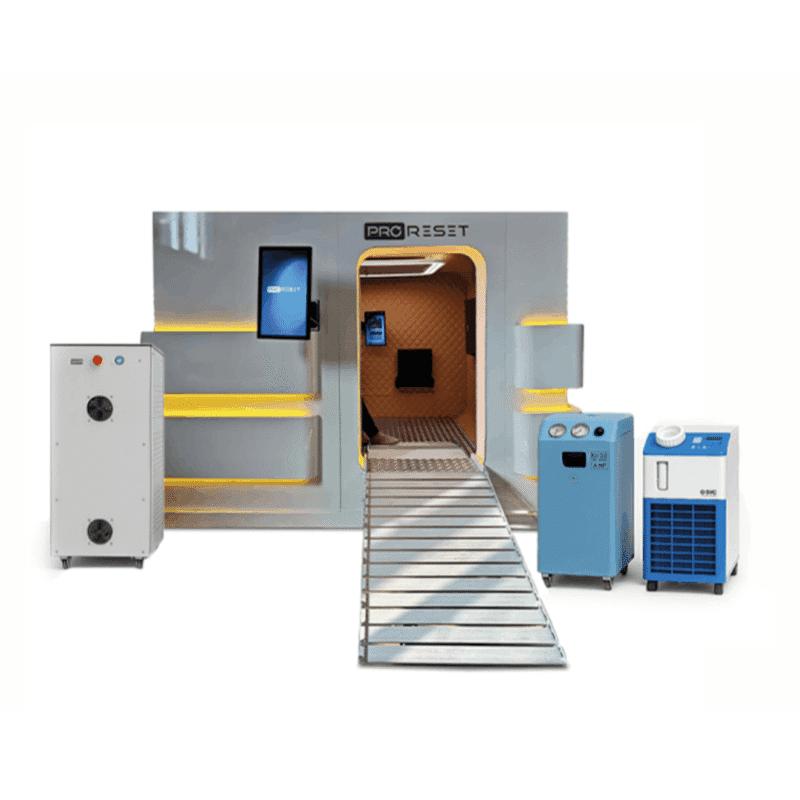

High Power Oxygen Concentrator
- The high-powered oxygen concentrator is designed to deliver 20 LPM of ±93% ±3% oxygen content at 5.0 Bar pressure to each user. This ensures that every breath taken within the hyperbaric chamber is enriched with the vital oxygen, maximizing the potential for wellness, recovery and performance.
Air Compressor
- The Air Compressor inflates the chamber body with filtered room air. The system compresses, maintains the user at the desired pressure, and decompresses the chamber when required. Chamber pressure and session duration are controlled by the user from the interior or from the operator from the exterior according to protocol recommendations.
Chiller System
- A chiller system for hyperbaric oxygen therapy (HBOT) is a component that helps regulate and maintain the temperature inside the chamber. When users are inside the chamber, the increased atmospheric pressure can cause the temperature to rise. The chiller system counteracts this effect by efficiently cooling the chamber and maintaining an optimal temperature for a comfortable hyperbaric experience.

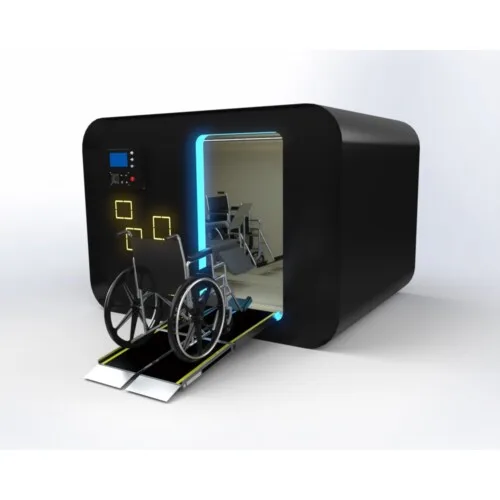

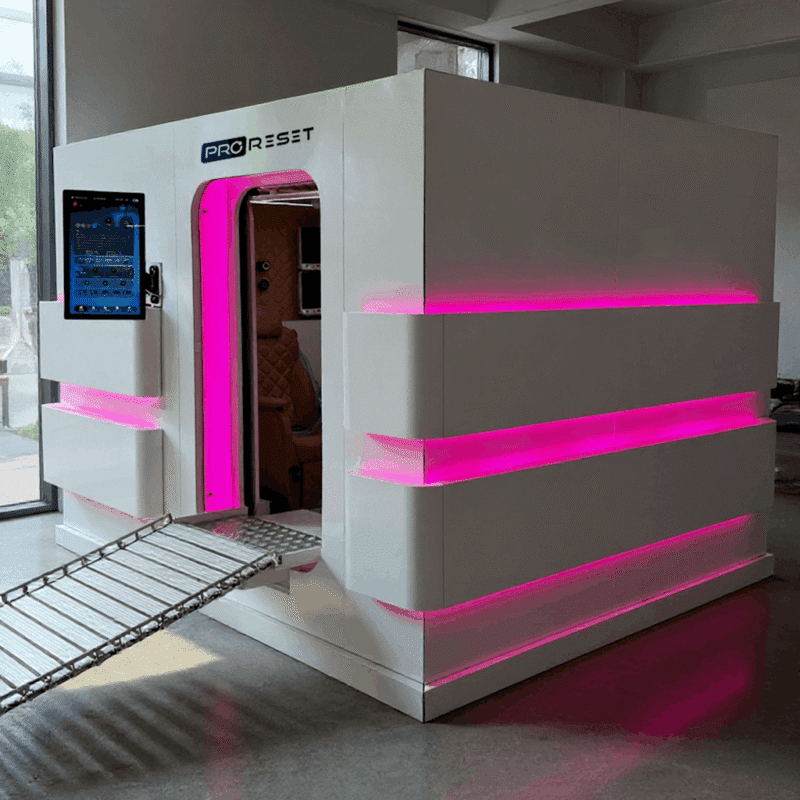

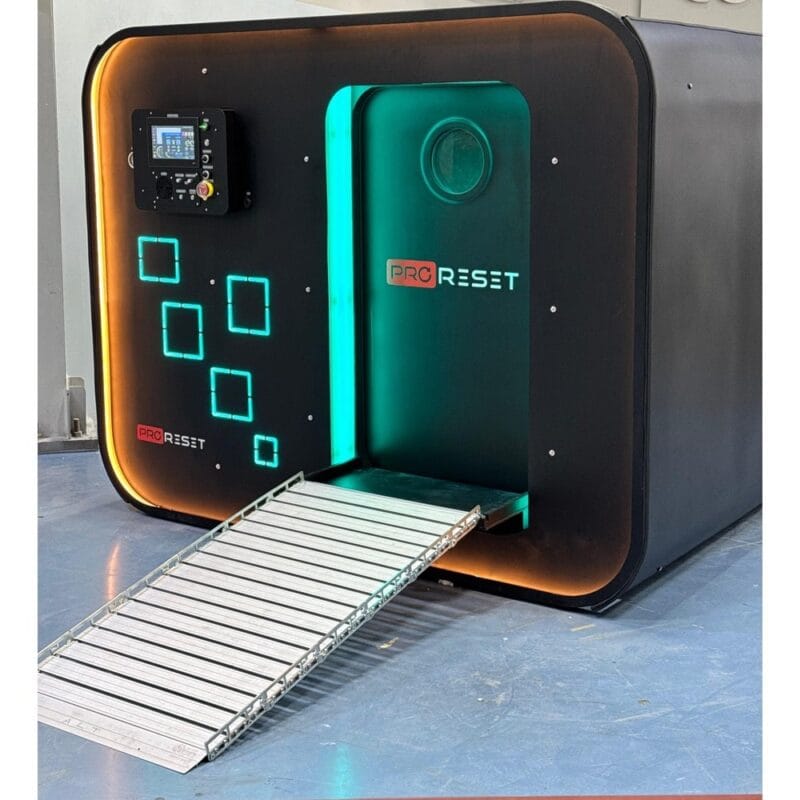

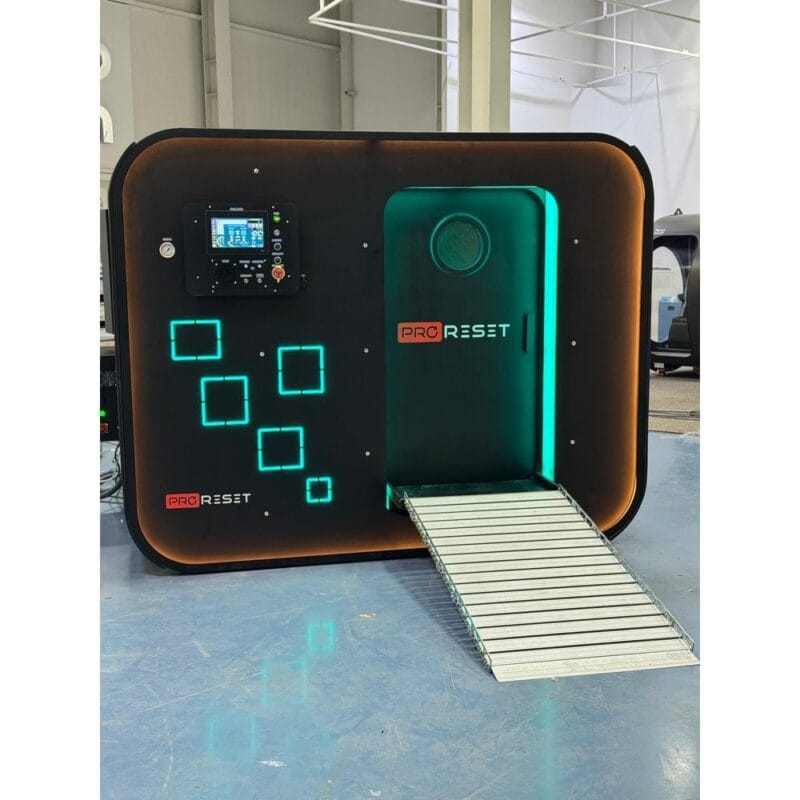

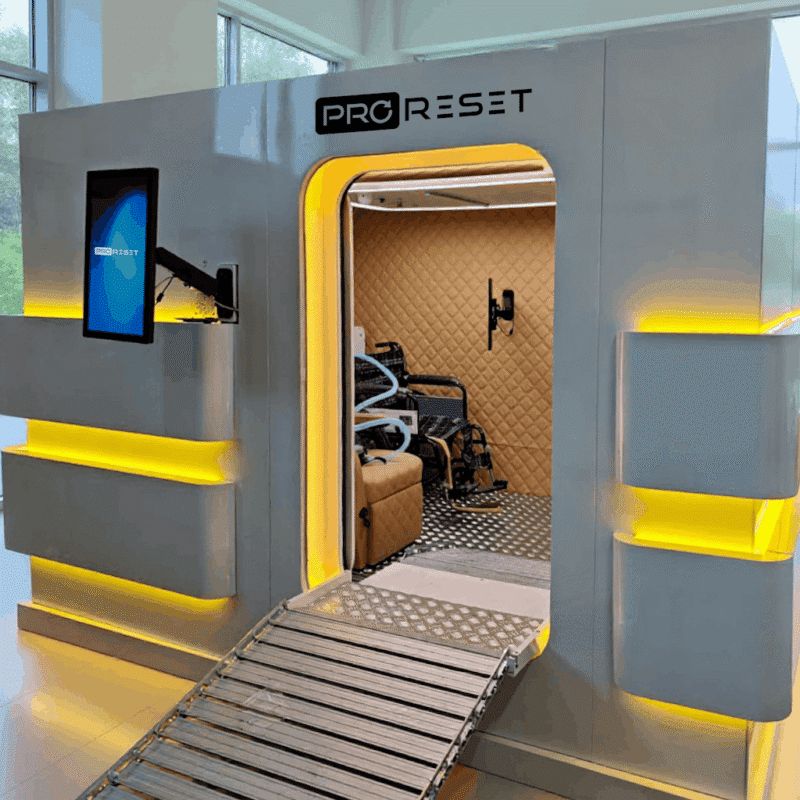

The Matrix is available as a one or two seater and as a wellness system or with medical CE certification as a medical device. It can also be customized with an extra wide automatic door and wheelchair ramp.
Optional Certifications: ASME PVHO-1, UKCA, MEDICAL CE
With a choice of over 170 RAL color codes, the Matrix can be fully customized with the client’s choice of exterior color, accent finishes, interior lining and lounge seat allowing for a personalized and functional style suited to individual preferences or interior design concept of any home, wellness centre or clinic.
Customization Options: Exterior Paint Color (RAL Codes), Interior Lining (Riva Codes), Lounge Seat (Modena or Polisoft).
