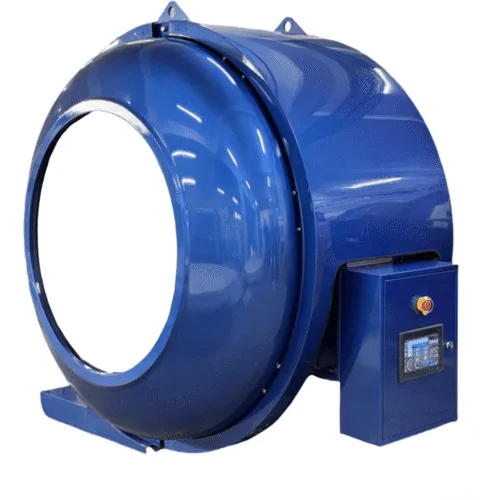

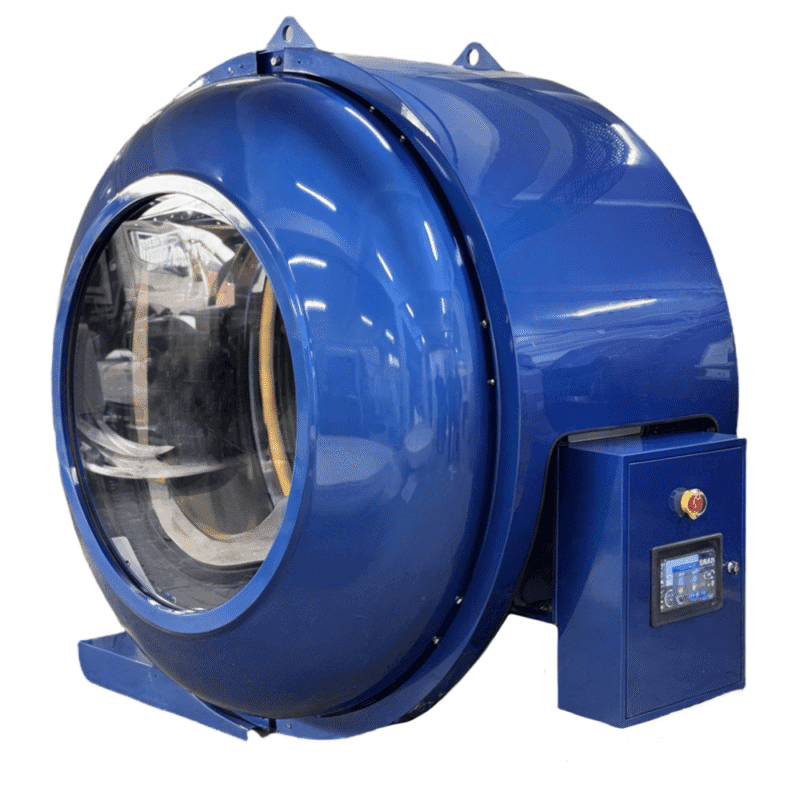

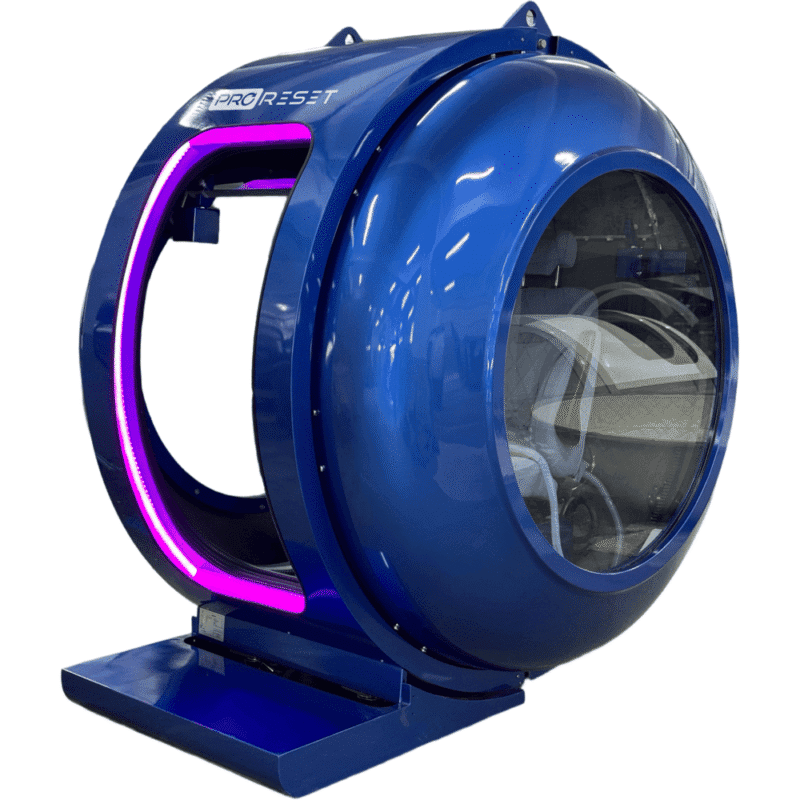

Petra
Designed for ultimate visibility and comfort, the Petra is a modular seated chamber available in 2.0 and 2.4 ATA versions with two panoramic windows and front acrylic retractable door.
- Wireless external/internal touch screen control and user-friendly automation.
- Dual oxygen delivery systems through BIBS mask and Free-Flow mask or cannula powered by a 5.0 Bar 20 LPM oxygen concentrator with a chiller for temperature regulation.
- Customizable exterior color, accent finishes, and interior lining to fit any style and design.
Petra

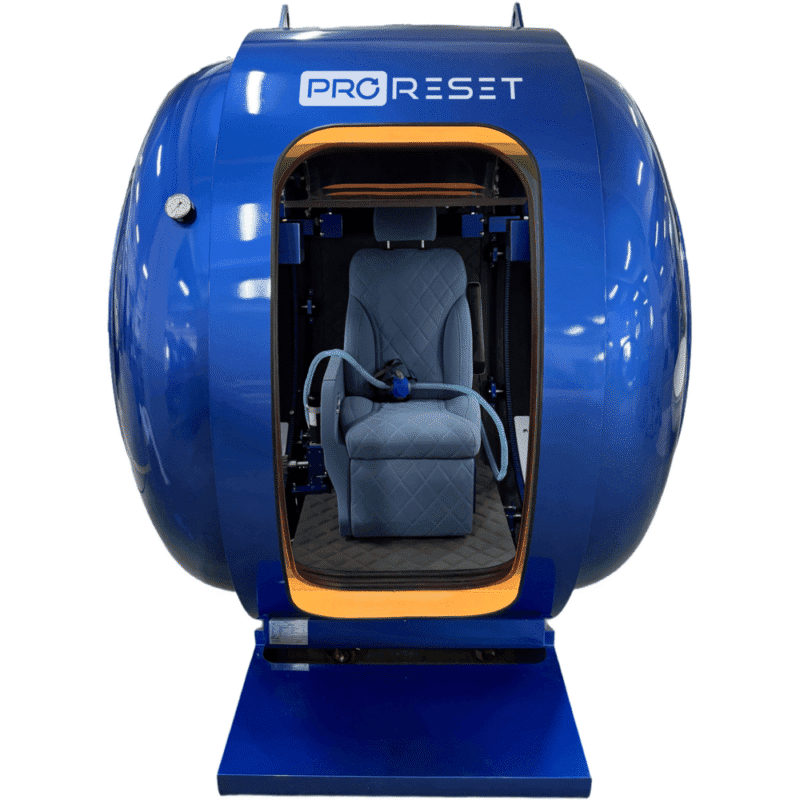

Petra is designed to provide exceptional visibility and comfort. With pressure options of 2.0 and 2.4* ATA, Petra’s standout feature is a retractable front acrylic door allowing easy access also for users with mobility challenges. Oversized panoramic windows enhance the sense of openness, reducing feelings of confinement during sessions. Built with aerospace aluminum or steel*, the Petra is equipped with an automated control system that can be operated via an internal or external touchscreen tablet or smartphone.
Powered by a 5.0 Bar 20 LPM oxygen concentrator* Petra delivers oxygen through a dual BIBS mask and Free-Flow system (masks or nasal cannula) eliminating the need for oxygen tanks. An optional chiller* maintains a comfortable interior temperature during sessions, while real-time monitoring displays real-time pressure, oxygen levels, speed, temperature, precise adjustments and session tracking. The chamber can be operated without external assistance.
The Petra offers an ergonomic lounge seat, adjustable LED lighting, continuous ventilation, and an eco-leather interior for maximum comfort. Dual communication systems ensure constant contact with operators, enhancing safety throughout therapy sessions.
Petra’s intelligent automation and customizable options, including exterior color, accent finishes, interior lining, and seating color choices, allow clients to tailor the chamber to their style and design.
* Optional
| Chamber Body | |
| Chamber Material (*|**) | Aero-Space Aluminium* & Acrylic |
| Chamber Dimension (LxWxH) | 124 x 198 x 186 cm |
| Max Pressure (Custom#) | 2.0* ATA | 2.4**# ATA |
| Chamber Weight (ATA-Kg) | 2.0-400 | 2.4-700 |
| Modular Sections | 3 |
| Oxygen Delivery (Dual) | BIBS & Free Flow Mask or Cannula |
| Control Tablet (Dual) | External 10″/Internal 10″ Tesla Style Touch Screen |
| Module Functions | Customizable protocols, 2-Way communication |
| Ocupancy x Seating (Option*) | 1 x Luxury Recliner & Foot Support |
| Lighting | Adjustable LED RGB lights |
| Certifications Included | 2006/42/EC/ , 93/42/EEC (PED) |
| Certifications Optional | ASME PVHO-1, UKCA, MEDICAL CE |
| Customization Options | Paint RAL, Interior Lining, Lounge Chair |
| Compressor | |
| Dimensions (LxWxH) cm | 100x50x80cm |
| Weight (Kg) | 67 |
| Horse Power (HP) | 4 |
| Lpm Output | 564 |
| Noise Level (db) | 48 |
| Price | Included |
| Oxygen Concentrator | |
| Dimensions (LxWxH) | kg | 70x48x107cm | 155kg |
| Lpm | o2% | Pressure | 20Lpm | ±93% | 5 Bar |
| Watts | Horse Power (HP) | 2500W | 3.3hp |
| Noise Level (db) | ≤72 db |
| Units Required | 1 |
| Price/Unit | Extra |
| Chiller | |
| SMC Chiller (Japan) | 1kW@-10C|-10C-40C|50x38x64cm|40kg |
| Cooling Method | Air-cooled refrigeration |
| Price | Extra |
Dual Oxygen Delivery Systems
- Providing a customized user experience, the ProReset x HPOTech hyperbaric chambers include a unique dual oxygen delivery system with the flexibility to switch to either BIBS mask or Free Flow (mask or cannula) system.
Built-in Breathing System (BIBS)
- BIBS is an advanced oxygen delivery system providing oxygen on demand only when a user needs to inhale. Oxygen is provided through a mask and sourced from a high-efficiency oxygen concentrator delivering 20 LPM (liters per minute). The BIBS system delivers oxygen regardless of the user’s breathing patterns, making it ideal for individuals with respiratory challenges or limited lung capacity. BIBS helps prevent carbon dioxide (CO₂) buildup by maintaining constant airflow, enhancing safety during hyperbaric oxygen therapy sessions. Its user-friendly design requires minimal user interaction.
Free Flow Oxygen Delivery System
- The Free Flow system offers a simple and effective method for delivering oxygen in hyperbaric chambers. Utilizing a 20 Lpm oxygen concentrator, it provides a continuous oxygen stream delivered directly to the user’s respiratory system via a mask or nasal cannula offering flexibility and comfort during sessions. The Free Flow system is ideal for those seeking a more flexible experience. Its simplicity, ease of use, and low maintenance make it a practical option.
High Power Oxygen Concentrator
- The high-powered oxygen concentrator is designed to deliver 20 LPM of ±93% ±3% oxygen content at 5.0 Bar pressure to each user. This ensures that every breath taken within the hyperbaric chamber is enriched with the vital oxygen, maximizing the potential for wellness, recovery and performance.
Air Compressor
- The Air Compressor inflates the chamber body with filtered room air. The system compresses, maintains the user at the desired pressure, and decompresses the chamber when required. Chamber pressure and session duration are controlled by the user from the interior or from the operator from the exterior according to protocol recommendations.
Chiller System
- A chiller system for hyperbaric oxygen therapy (HBOT) is a component that helps regulate and maintain the temperature inside the chamber. When users are inside the chamber, the increased atmospheric pressure can cause the temperature to rise. The chiller system counteracts this effect by efficiently cooling the chamber and maintaining an optimal temperature for a comfortable hyperbaric experience.
The Petra is available as a wellness system or with medical CE certification as a medical device.
Optional Certifications: ASME PVHO-1, UKCA, MEDICAL CE
With a choice of over 170 RAL color codes, the Petra can be fully customized with the client’s choice of exterior color, accent finishes, interior lining and lounge seat allowing for a personalized and functional style suited to individual preferences or interior design concept of any home, wellness centre or clinic.
Customization Options: Exterior Paint Color (RAL Codes), Interior Lining (Riva Codes), Lounge Seat (Modena or Polisoft).
